WR18AF

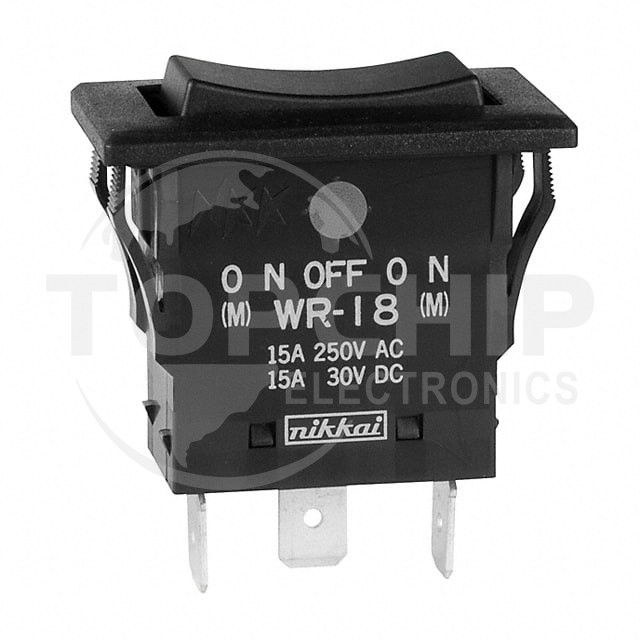

Image is for reference, please contact us to get the real picture

Manufacturer Part
WR18AF
Manufacturer
NKK Switches
Description
SWITCH ROCKER SPDT 15A 125V
Category
Switches
Family
Rocker Switches
Series
-
In Stock
63174
Datasheets
-

WR18AF Specifications

  • Series:WR
  • Package:Bulk
  • Part Status:Active
  • Mounting Type:Panel Mount, Snap-In
  • Circuit:SPDT
  • Switch Function:Mom-Off-Mom
  • Current Rating (Amps):15A (AC/DC)
  • Voltage Rating - AC:125 V
  • Voltage Rating - DC:30 V
  • Actuator Type:Concave (Curved)
  • Color - Actuator/Cap:Black
  • Actuator Marking:No Marking
  • Illumination Type, Color:-
  • Illumination Voltage (Nominal):-
  • Termination Style:Quick Connect - 0.250" (6.3mm)
  • Ingress Protection:IP67 - Dust Tight, Waterproof
  • Features:Epoxy Sealed Terminals
  • Panel Cutout Dimensions:Rectangular - 34.20mm x 17.20mm
  • Operating Temperature:-25°C ~ 85°C
