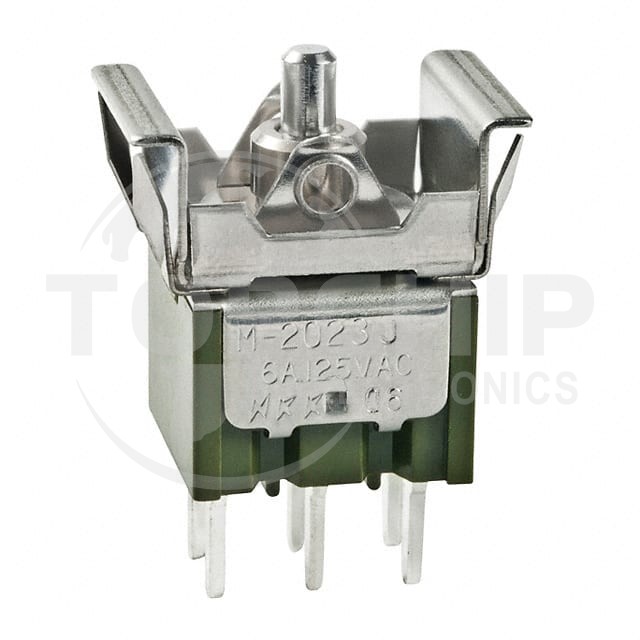

M2023TJW03

Image is for reference, please contact us to get the real picture

Manufacturer Part
M2023TJW03
Manufacturer
NKK Switches
Description
SWITCH ROCKER DPDT 6A 125V
Category
Switches
Family
Rocker Switches
Series
-
In Stock
43
Datasheets
-

M2023TJW03 Specifications

  • Series:M
  • Package:Bulk
  • Part Status:Active
  • Mounting Type:Panel Mount, Snap-In
  • Circuit:DPDT
  • Switch Function:On-Off-On
  • Current Rating (Amps):6A (AC), 3A (DC)
  • Voltage Rating - AC:125 V
  • Voltage Rating - DC:30 V
  • Actuator Type:Actuator Arm, Cap Required
  • Color - Actuator/Cap:-
  • Actuator Marking:Varies by Cap
  • Illumination Type, Color:-
  • Illumination Voltage (Nominal):-
  • Termination Style:PC Pin
  • Ingress Protection:-
  • Features:Epoxy Sealed Terminals
  • Panel Cutout Dimensions:Rectangular - 15.90mm x 13.10mm
  • Operating Temperature:-30°C ~ 85°C
