LSYMB4N

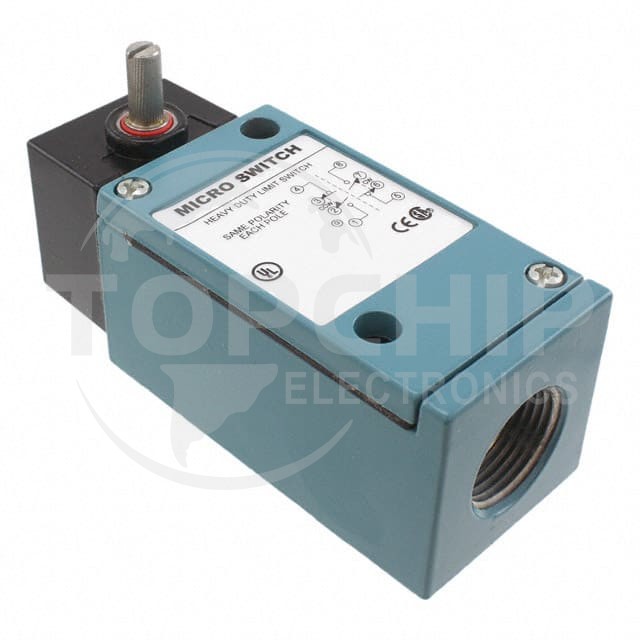

Image is for reference, please contact us to get the real picture

Manufacturer Part
LSYMB4N
Manufacturer
Honeywell Sensing and Productivity Solutions
Description
SWITCH SNAP ACTION DPDT 10A 120V
Category
Switches
Family
Snap Action, Limit Switches
Series
-
In Stock
8
Datasheets
-

LSYMB4N Specifications

  • Series:HDLS
  • Package:Bulk
  • Part Status:Active
  • Circuit:DPDT (DB/DM)
  • Switch Function:Mom-Off-Mom
  • Current Rating (Amps):10A (AC), 800mA (DC)
  • Voltage Rating - AC:120 V
  • Voltage Rating - DC:115 V
  • Actuator Type:Side Rotary - No Lever
  • Mounting Type:Chassis Mount
  • Termination Style:Screw Terminal
  • Ingress Protection:-
  • Features:Center Neutral
  • Operating Force:46gfm
  • Release Force:-
  • Pretravel:18°
  • Differential Travel:10°
  • Overtravel:57°
  • Operating Temperature:-40°C ~ 121°C
