C5P0304N-A

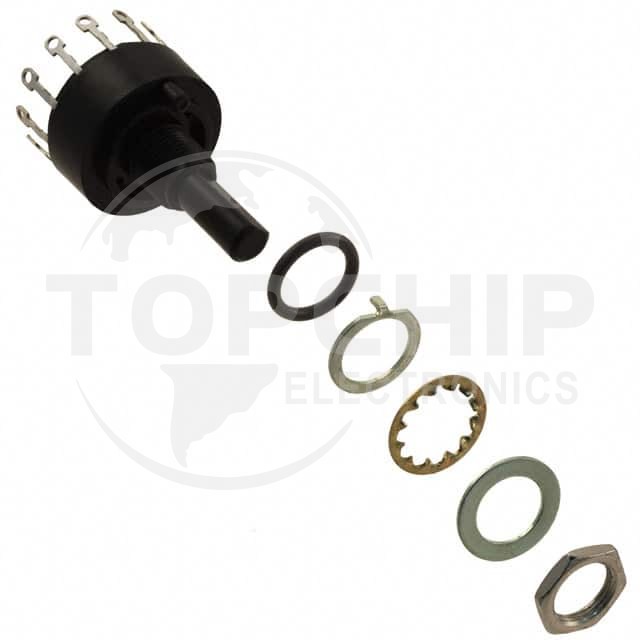

Image is for reference, please contact us to get the real picture

Manufacturer Part
C5P0304N-A
Manufacturer
Electroswitch
Description
SWITCH ROTARY 2-4POS 1A 125V
Category
Switches
Family
Rotary Switches
Series
-
In Stock
110
Datasheets
-

C5P0304N-A Specifications

  • Series:C5
  • Package:Bulk
  • Part Status:Active
  • Number of Positions:2 ~ 4
  • Index Stops:Adjustable
  • Number of Decks:1
  • Number of Poles per Deck:3
  • Circuit per Deck:3P4T
  • Contact Timing:Non-Shorting (BBM)
  • Current Rating (Amps):1A (AC/DC)
  • Voltage Rating - AC:125 V
  • Voltage Rating - DC:28 V
  • Actuator Type:Flatted (6.35mm Dia)
  • Actuator Length:14.29mm
  • Angle of Throw:30°
  • Contact Material:Brass
  • Contact Finish:Silver
  • Mounting Type:Panel Mount
  • Termination Style:Solder Lug
  • Features:Sealed
  • Depth Behind Panel:20.07mm
