TB1-2G-DC-6

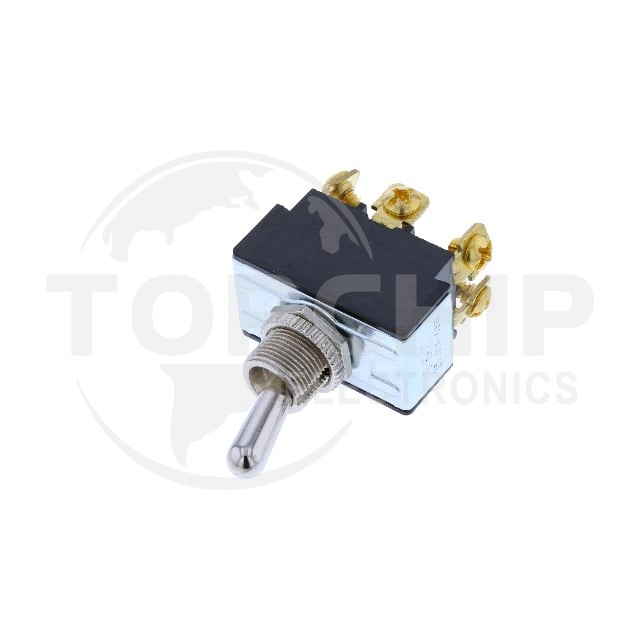

Image is for reference, please contact us to get the real picture

Manufacturer Part
TB1-2G-DC-6
Manufacturer
Switch Components
Description
DPDT (ON)-OFF-(ON) SCRW 15/32
Category
Switches
Family
Toggle Switches
Series
-
In Stock
3378
Datasheets
-

TB1-2G-DC-6 Specifications

  • Series:TB1
  • Package:Bulk
  • Part Status:Active
  • Mounting Type:Panel Mount
  • Circuit:DPDT
  • Switch Function:Mom-Off-Mom
  • Current Rating (Amps):21A (DC)
  • Voltage Rating - AC:-
  • Voltage Rating - DC:14 V
  • Actuator Type:Standard Round
  • Actuator Length:16.50mm
  • Illumination:Non-Illuminated
  • Illumination Type, Color:-
  • Illumination Voltage (Nominal):-
  • Termination Style:Screw Terminal
  • Panel Cutout Dimensions:Circular - 12.00mm Dia
  • Bushing Thread:15/32-32
  • Ingress Protection:-
  • Features:-
  • Operating Temperature:-
