S29AWF

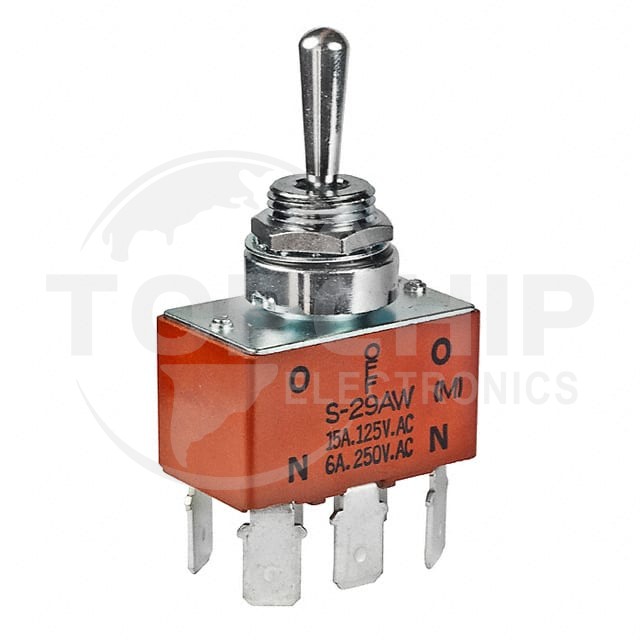

Image is for reference, please contact us to get the real picture

Manufacturer Part
S29AWF
Manufacturer
NKK Switches
Description
SWITCH TOGGLE DPDT 15A 125V
Category
Switches
Family
Toggle Switches
Series
-
In Stock
19
Datasheets
-

S29AWF Specifications

  • Series:S
  • Package:Bulk
  • Part Status:Active
  • Mounting Type:Panel Mount
  • Circuit:DPDT
  • Switch Function:On-Off-Mom
  • Current Rating (Amps):15A (AC), 20A (DC)
  • Voltage Rating - AC:125 V
  • Voltage Rating - DC:30 V
  • Actuator Type:Standard Round
  • Actuator Length:17.50mm
  • Illumination:Non-Illuminated
  • Illumination Type, Color:-
  • Illumination Voltage (Nominal):-
  • Termination Style:Quick Connect - 0.250" (6.3mm)
  • Panel Cutout Dimensions:Circular - 12.50mm Dia
  • Bushing Thread:M12 x 1
  • Ingress Protection:IP67 - Dust Tight, Waterproof
  • Features:-
  • Operating Temperature:-30°C ~ 70°C
