S823/U

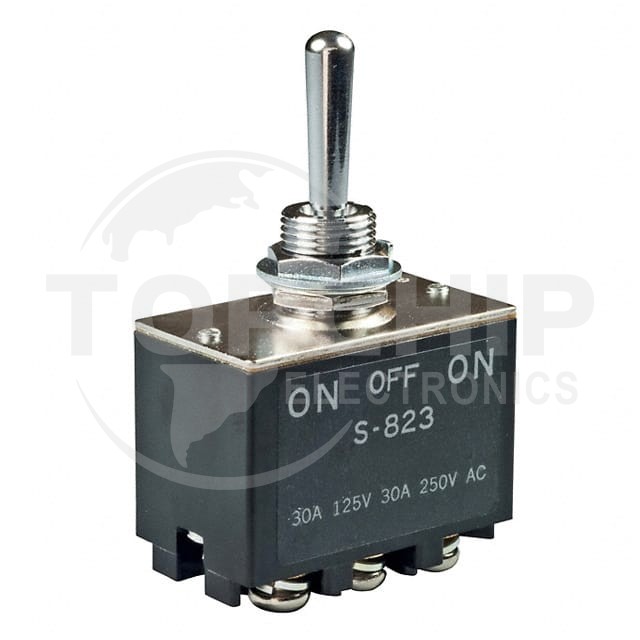

Image is for reference, please contact us to get the real picture

Manufacturer Part
S823/U
Manufacturer
NKK Switches
Description
SWITCH TOGGLE DPDT 30A 125V
Category
Switches
Family
Toggle Switches
Series
-
In Stock
55
Datasheets
-

S823/U Specifications

  • Series:S
  • Package:Bulk
  • Part Status:Active
  • Mounting Type:Panel Mount
  • Circuit:DPDT
  • Switch Function:On-Off-On
  • Current Rating (Amps):30A (AC/DC)
  • Voltage Rating - AC:125 V
  • Voltage Rating - DC:30 V
  • Actuator Type:Standard Round
  • Actuator Length:22.00mm
  • Illumination:Non-Illuminated
  • Illumination Type, Color:-
  • Illumination Voltage (Nominal):-
  • Termination Style:Screw Terminal
  • Panel Cutout Dimensions:Circular - 12.50mm Dia
  • Bushing Thread:M12 x 1
  • Ingress Protection:-
  • Features:-
  • Operating Temperature:-10°C ~ 70°C
