WT22L

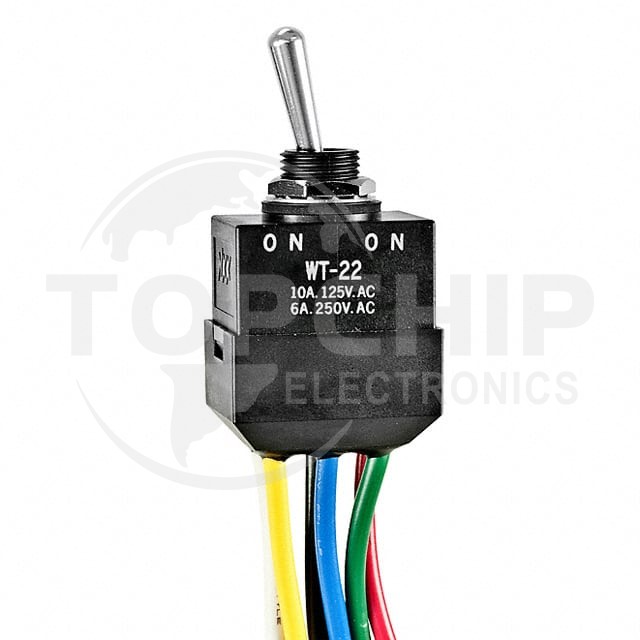

Image is for reference, please contact us to get the real picture

Manufacturer Part
WT22L
Manufacturer
NKK Switches
Description
SWITCH TOGGLE DPDT 10A 125V
Category
Switches
Family
Toggle Switches
Series
-
In Stock
2
Datasheets
-

WT22L Specifications

  • Series:WT
  • Package:Bulk
  • Part Status:Active
  • Mounting Type:Panel Mount
  • Circuit:DPDT
  • Switch Function:On-On
  • Current Rating (Amps):10A (AC/DC)
  • Voltage Rating - AC:125 V
  • Voltage Rating - DC:30 V
  • Actuator Type:Standard Round
  • Actuator Length:17.50mm
  • Illumination:Non-Illuminated
  • Illumination Type, Color:-
  • Illumination Voltage (Nominal):-
  • Termination Style:Wire Leads
  • Panel Cutout Dimensions:Circular - 12.50mm Dia
  • Bushing Thread:M12 x 1
  • Ingress Protection:IP67 - Dust Tight, Waterproof
  • Features:Epoxy Sealed Terminals
  • Operating Temperature:-30°C ~ 70°C
