S3AW

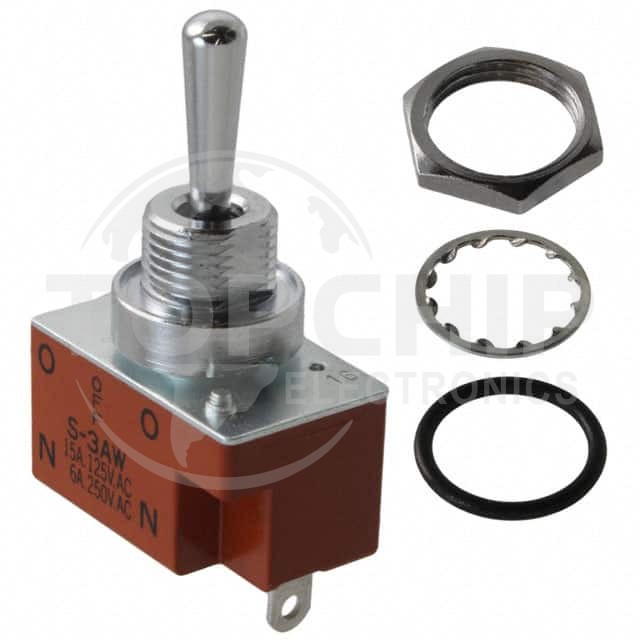

Image is for reference, please contact us to get the real picture

Manufacturer Part
S3AW
Manufacturer
NKK Switches
Description
SWITCH TOGGLE SPDT 15A 125V
Category
Switches
Family
Toggle Switches
Series
-
In Stock
170186
Datasheets
-

S3AW Specifications

  • Series:S
  • Package:Bulk
  • Part Status:Active
  • Mounting Type:Panel Mount
  • Circuit:SPDT
  • Switch Function:On-Off-On
  • Current Rating (Amps):15A (AC), 20A (DC)
  • Voltage Rating - AC:125 V
  • Voltage Rating - DC:30 V
  • Actuator Type:Standard Round
  • Actuator Length:17.50mm
  • Illumination:Non-Illuminated
  • Illumination Type, Color:-
  • Illumination Voltage (Nominal):-
  • Termination Style:Solder Lug
  • Panel Cutout Dimensions:Circular - 12.50mm Dia
  • Bushing Thread:M12 x 1
  • Ingress Protection:IP67 - Dust Tight, Waterproof
  • Features:-
  • Operating Temperature:-30°C ~ 70°C
