M2022LL2W30

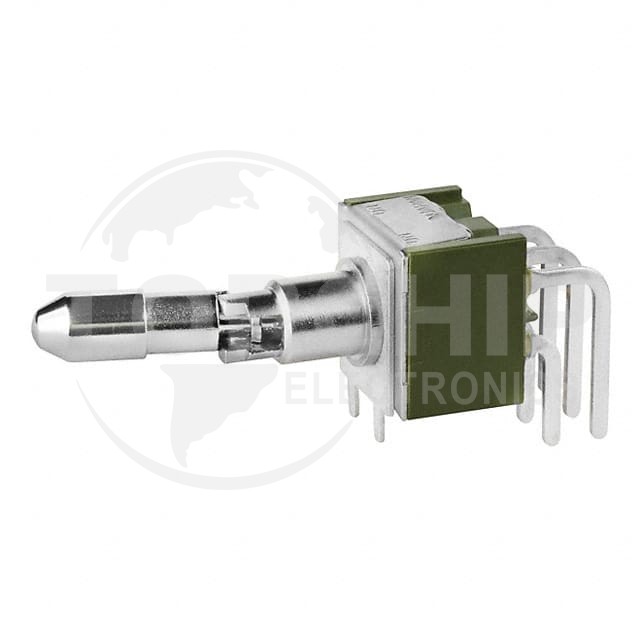

Image is for reference, please contact us to get the real picture

Manufacturer Part
M2022LL2W30
Manufacturer
NKK Switches
Description
SWITCH TOGGLE DPDT 6A 125V
Category
Switches
Family
Toggle Switches
Series
-
In Stock
2389
Datasheets
-

M2022LL2W30 Specifications

  • Series:M
  • Package:Tray
  • Part Status:Active
  • Mounting Type:Through Hole, Right Angle
  • Circuit:DPDT
  • Switch Function:On-On
  • Current Rating (Amps):6A (AC), 4A (DC)
  • Voltage Rating - AC:125 V
  • Voltage Rating - DC:30 V
  • Actuator Type:Locking Lever
  • Actuator Length:16.50mm
  • Illumination:Non-Illuminated
  • Illumination Type, Color:-
  • Illumination Voltage (Nominal):-
  • Termination Style:PC Pin
  • Panel Cutout Dimensions:-
  • Bushing Thread:Unthreaded
  • Ingress Protection:-
  • Features:Epoxy Sealed Terminals
  • Operating Temperature:-30°C ~ 85°C
