E103SD1AV3GE

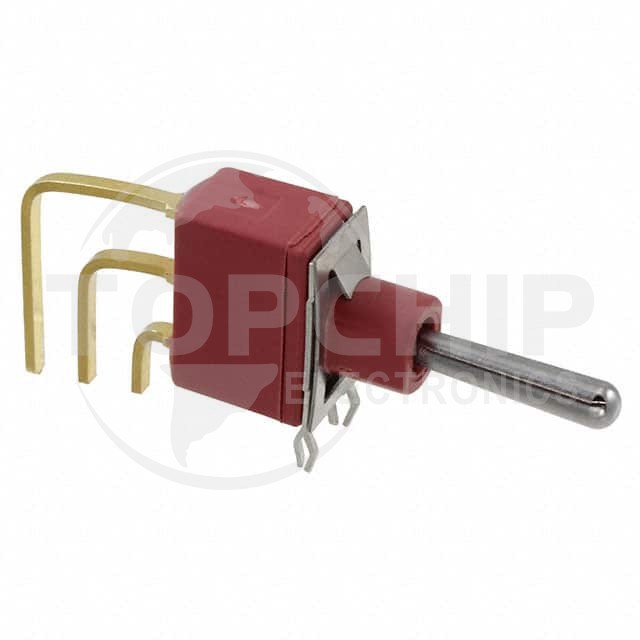

Image is for reference, please contact us to get the real picture

Manufacturer Part
E103SD1AV3GE
Manufacturer
C&K
Description
SWITCH TOGGLE SPDT 7.5A 125V
Category
Switches
Family
Toggle Switches
Series
-
In Stock
74
Datasheets
-

E103SD1AV3GE Specifications

  • Series:E
  • Package:Tray
  • Part Status:Active
  • Mounting Type:Through Hole, Right Angle, Vertical
  • Circuit:SPDT
  • Switch Function:On-Off-On
  • Current Rating (Amps):7.5A (AC/DC)
  • Voltage Rating - AC:125 V
  • Voltage Rating - DC:28 V
  • Actuator Type:Standard Round
  • Actuator Length:12.70mm
  • Illumination:Non-Illuminated
  • Illumination Type, Color:-
  • Illumination Voltage (Nominal):-
  • Termination Style:PC Pin
  • Panel Cutout Dimensions:-
  • Bushing Thread:Unthreaded
  • Ingress Protection:IP57 - Dust Protected, Waterproof
  • Features:Epoxy Sealed Terminals
  • Operating Temperature:-30°C ~ 85°C
