4-1825139-2

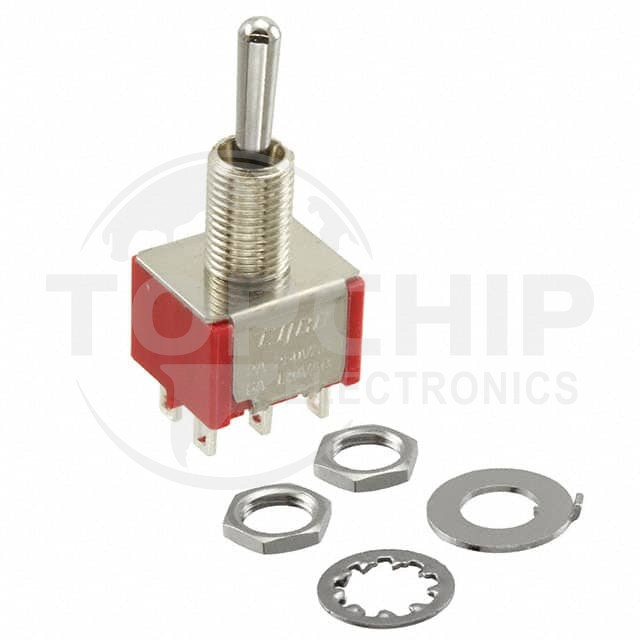

Image is for reference, please contact us to get the real picture

Manufacturer Part
4-1825139-2
Manufacturer
TE Connectivity ALCOSWITCH Switches
Description
SWITCH TOGGLE SP3T 5A 120V
Category
Switches
Family
Toggle Switches
Series
-
In Stock
451
Datasheets
-

4-1825139-2 Specifications

  • Series:Gemini A
  • Package:Bulk
  • Part Status:Active
  • Mounting Type:Panel Mount
  • Circuit:SP3T
  • Switch Function:On-On-Mom
  • Current Rating (Amps):5A (AC/DC)
  • Voltage Rating - AC:120 V
  • Voltage Rating - DC:28 V
  • Actuator Type:Standard Round
  • Actuator Length:10.41mm
  • Illumination:Non-Illuminated
  • Illumination Type, Color:-
  • Illumination Voltage (Nominal):-
  • Termination Style:Solder Lug
  • Panel Cutout Dimensions:Circular - 6.35mm Dia
  • Bushing Thread:1/4-40
  • Ingress Protection:-
  • Features:Jumper needed to achieve triple throw
  • Operating Temperature:-30°C ~ 85°C
