1825138-3

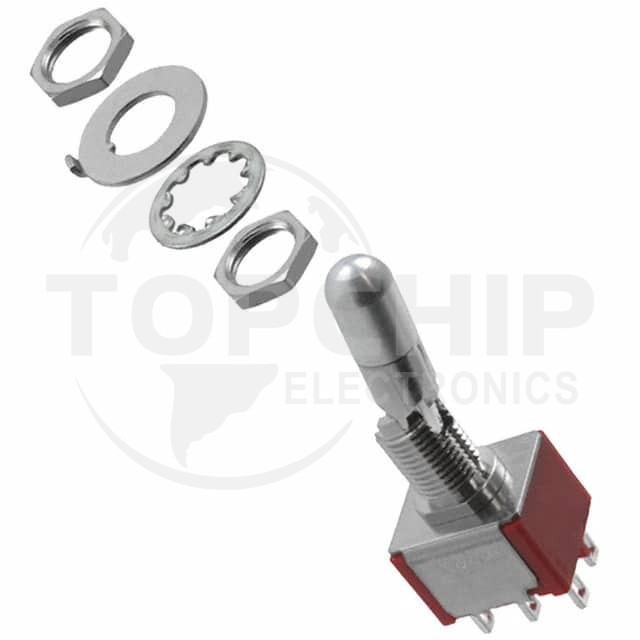

Image is for reference, please contact us to get the real picture

Manufacturer Part
1825138-3
Manufacturer
TE Connectivity ALCOSWITCH Switches
Description
SWITCH TOGGLE DPDT 5A 120V
Category
Switches
Family
Toggle Switches
Series
-
In Stock
58
Datasheets
-

1825138-3 Specifications

  • Series:Gemini A
  • Package:Bulk
  • Part Status:Active
  • Mounting Type:Panel Mount
  • Circuit:DPDT
  • Switch Function:On-On
  • Current Rating (Amps):5A (AC/DC)
  • Voltage Rating - AC:120 V
  • Voltage Rating - DC:28 V
  • Actuator Type:Locking Lever
  • Actuator Length:16.51mm
  • Illumination:Non-Illuminated
  • Illumination Type, Color:-
  • Illumination Voltage (Nominal):-
  • Termination Style:Solder Lug
  • Panel Cutout Dimensions:Circular - 6.35mm Dia
  • Bushing Thread:1/4-40
  • Ingress Protection:-
  • Features:Epoxy Sealed Terminals
  • Operating Temperature:-30°C ~ 85°C
