STB45NF06T4 Specifications

• Series:STripFET™ II
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• FET Type:N-Channel
• Technology:MOSFET (Metal Oxide)
• Drain to Source Voltage (Vdss):60 V
• Current - Continuous Drain (Id) @ 25°C:38A (Tc)
• Drive Voltage (Max Rds On, Min Rds On):10V
• Rds On (Max) @ Id, Vgs:28mOhm @ 19A, 10V
• Vgs(th) (Max) @ Id:4V @ 250µA
• Gate Charge (Qg) (Max) @ Vgs:58 nC @ 10 V
• Vgs (Max):±20V
• Input Capacitance (Ciss) (Max) @ Vds:1730 pF @ 25 V
• FET Feature:-
• Power Dissipation (Max):80W (Tc)
• Operating Temperature:175°C (TJ)
• Mounting Type:Surface Mount

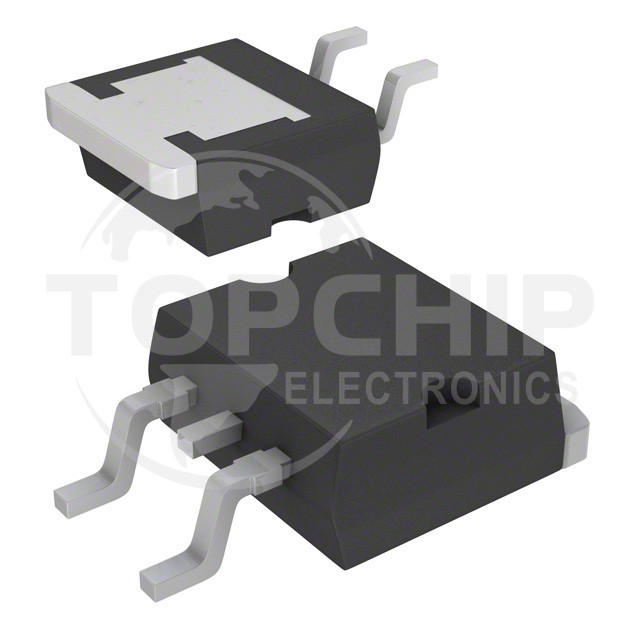

• Supplier Device Package:D2PAK
• Package / Case:TO-263-4, D²Pak (3 Leads + Tab), TO-263AA
