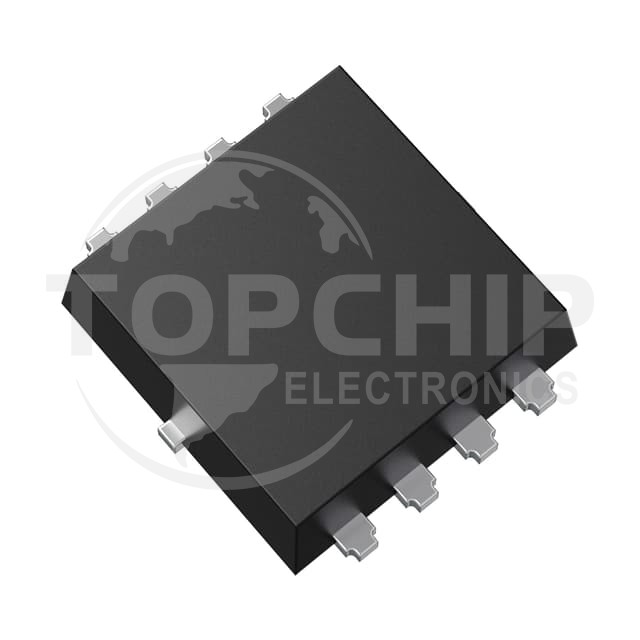

XPN6R706NC,L1XHQ Specifications

• Series:U-MOSVIII-H
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• FET Type:N-Channel
• Technology:MOSFET (Metal Oxide)
• Drain to Source Voltage (Vdss):60 V
• Current - Continuous Drain (Id) @ 25°C:40A (Ta)
• Drive Voltage (Max Rds On, Min Rds On):4.5V, 10V
• Rds On (Max) @ Id, Vgs:6.7mOhm @ 20A, 10V
• Vgs(th) (Max) @ Id:2.5V @ 300µA
• Gate Charge (Qg) (Max) @ Vgs:35 nC @ 10 V
• Vgs (Max):±20V
• Input Capacitance (Ciss) (Max) @ Vds:2000 pF @ 10 V
• FET Feature:-
• Power Dissipation (Max):840mW (Ta), 100W (Tc)
• Operating Temperature:175°C
• Mounting Type:Surface Mount
• Supplier Device Package:8-TSON Advance-WF (3.1x3.1)
• Package / Case:8-PowerVDFN
