NTD50N03R-35G Specifications

• Series:-
• Package:Tube
• Part Status:Obsolete
• FET Type:N-Channel
• Technology:MOSFET (Metal Oxide)
• Drain to Source Voltage (Vdss):25 V
• Current - Continuous Drain (Id) @ 25°C:7.8A (Ta), 45A (Tc)
• Drive Voltage (Max Rds On, Min Rds On):4.5V, 11.5V
• Rds On (Max) @ Id, Vgs:12mOhm @ 30A, 11.5V
• Vgs(th) (Max) @ Id:2V @ 250µA
• Gate Charge (Qg) (Max) @ Vgs:15 nC @ 11.5 V
• Vgs (Max):±20V
• Input Capacitance (Ciss) (Max) @ Vds:750 pF @ 12 V
• FET Feature:-
• Power Dissipation (Max):1.5W (Ta), 50W (Tc)
• Operating Temperature:-55°C ~ 175°C (TJ)
• Mounting Type:Through Hole

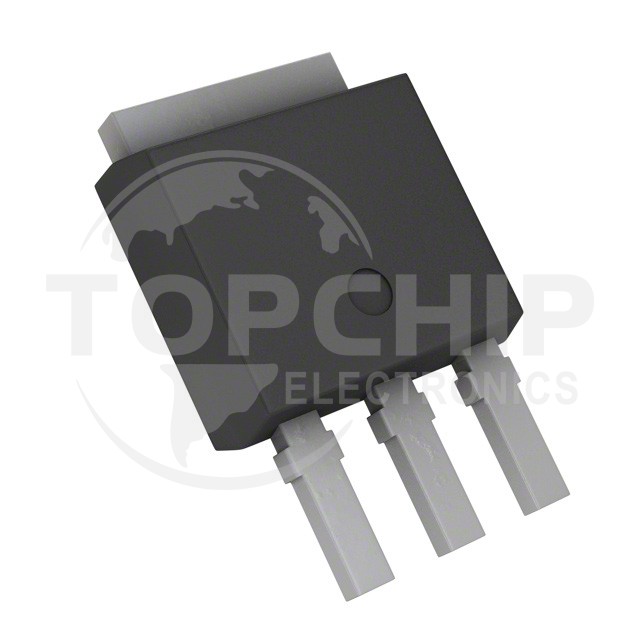

• Supplier Device Package:I-PAK
• Package / Case:TO-251-3 Stub Leads, IPak
