FCI25N60N-F102 Specifications

• Series:SupreMOS™
• Package:Bulk
• Part Status:Active
• FET Type:N-Channel
• Technology:MOSFET (Metal Oxide)
• Drain to Source Voltage (Vdss):600 V
• Current - Continuous Drain (Id) @ 25°C:25A (Tc)
• Drive Voltage (Max Rds On, Min Rds On):10V
• Rds On (Max) @ Id, Vgs:125mOhm @ 12.5A, 10V
• Vgs(th) (Max) @ Id:4V @ 250µA
• Gate Charge (Qg) (Max) @ Vgs:74 nC @ 10 V
• Vgs (Max):±30V
• Input Capacitance (Ciss) (Max) @ Vds:3.352 pF @ 100 V
• FET Feature:-
• Power Dissipation (Max):216W (Tc)
• Operating Temperature:-55°C ~ 150°C (TJ)
• Mounting Type:Through Hole

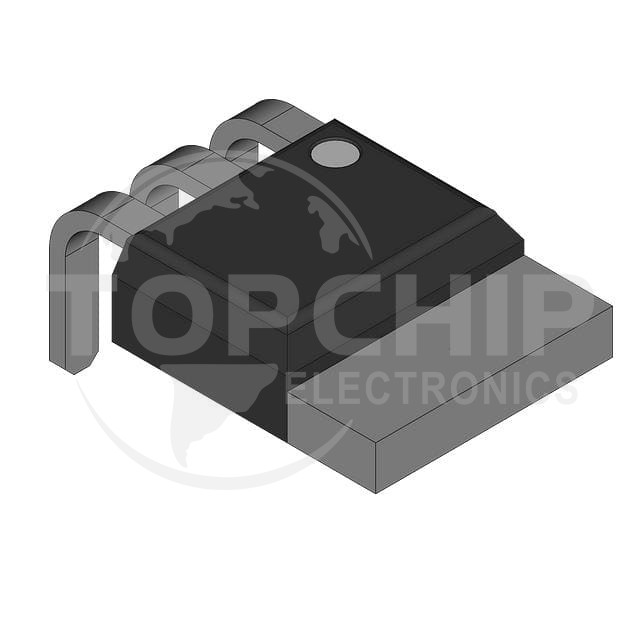

• Supplier Device Package:I2PAK (TO-262)
• Package / Case:TO-262-3 Long Leads, I²Pak, TO-262AA
