DMT6017LFDF-7 Specifications

• Series:-
• Package:Tape & Reel (TR)
• Part Status:Active
• FET Type:N-Channel
• Technology:MOSFET (Metal Oxide)
• Drain to Source Voltage (Vdss):65 V
• Current - Continuous Drain (Id) @ 25°C:8.1A (Ta)
• Drive Voltage (Max Rds On, Min Rds On):4.5V, 10V
• Rds On (Max) @ Id, Vgs:18mOhm @ 6A, 10V
• Vgs(th) (Max) @ Id:2.3V @ 250µA
• Gate Charge (Qg) (Max) @ Vgs:15.3 nC @ 10 V
• Vgs (Max):±16V
• Input Capacitance (Ciss) (Max) @ Vds:891 pF @ 30 V
• FET Feature:-
• Power Dissipation (Max):800mW (Ta)
• Operating Temperature:-55°C ~ 150°C (TJ)
• Mounting Type:Surface Mount

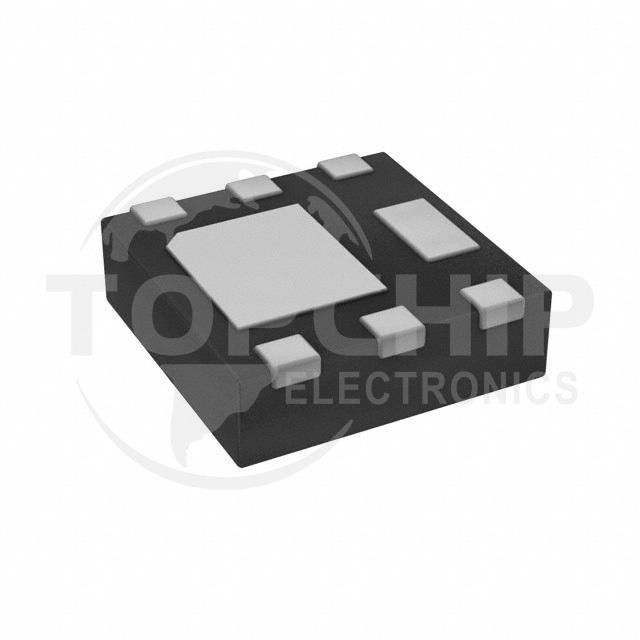

• Supplier Device Package:U-DFN2020-6 (Type F)
• Package / Case:6-UDFN Exposed Pad
