SIR800ADP-T1-RE3 Specifications

• Series:TrenchFET® Gen IV
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• FET Type:N-Channel
• Technology:MOSFET (Metal Oxide)
• Drain to Source Voltage (Vdss):20 V
• Current - Continuous Drain (Id) @ 25°C:50.2A (Ta), 177A (Tc)
• Drive Voltage (Max Rds On, Min Rds On):2.5V, 10V
• Rds On (Max) @ Id, Vgs:1.35mOhm @ 10A, 10V
• Vgs(th) (Max) @ Id:1.5V @ 250µA
• Gate Charge (Qg) (Max) @ Vgs:53 nC @ 10 V
• Vgs (Max):+12V, -8V
• Input Capacitance (Ciss) (Max) @ Vds:3415 pF @ 10 V
• FET Feature:-
• Power Dissipation (Max):5W (Ta), 62.5W (Tc)
• Operating Temperature:-55°C ~ 150°C (TJ)
• Mounting Type:Surface Mount

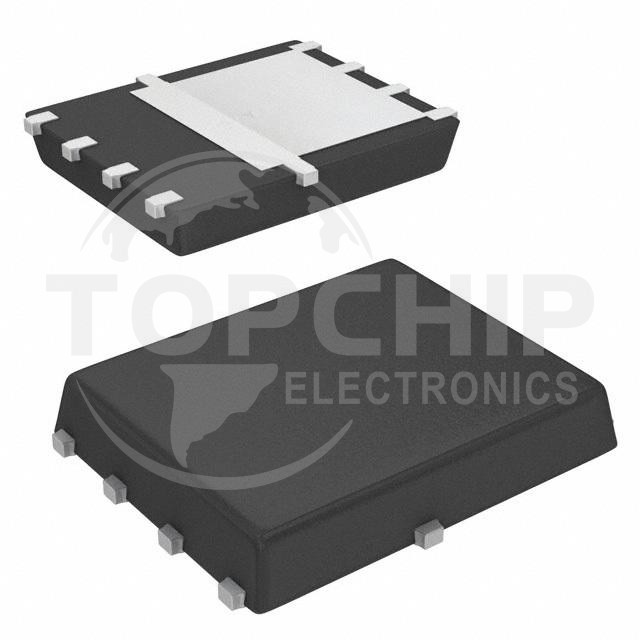

• Supplier Device Package:PowerPAK® SO-8
• Package / Case:PowerPAK® SO-8
