IRLU3410PBF Specifications

• Series:HEXFET®
• Package:Tube
• Part Status:Active
• FET Type:N-Channel
• Technology:MOSFET (Metal Oxide)
• Drain to Source Voltage (Vdss):100 V
• Current - Continuous Drain (Id) @ 25°C:17A (Tc)
• Drive Voltage (Max Rds On, Min Rds On):4V, 10V
• Rds On (Max) @ Id, Vgs:105mOhm @ 10A, 10V
• Vgs(th) (Max) @ Id:2V @ 250µA
• Gate Charge (Qg) (Max) @ Vgs:34 nC @ 5 V
• Vgs (Max):±16V
• Input Capacitance (Ciss) (Max) @ Vds:800 pF @ 25 V
• FET Feature:-
• Power Dissipation (Max):79W (Tc)
• Operating Temperature:-55°C ~ 175°C (TJ)
• Mounting Type:Through Hole

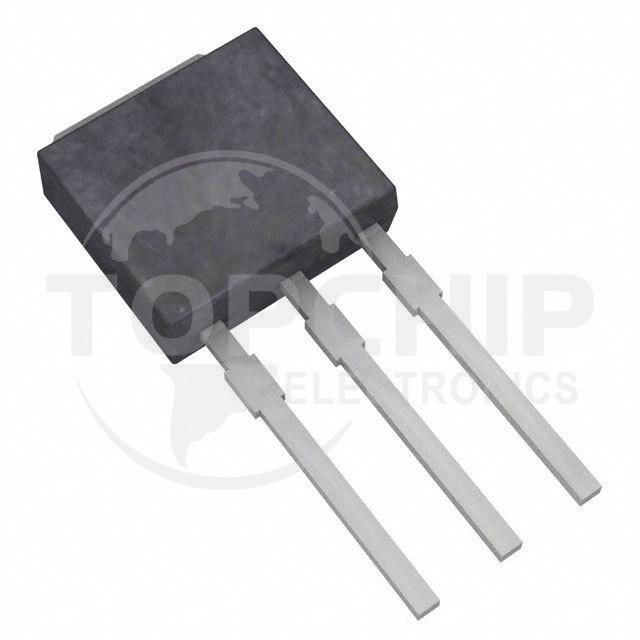

• Supplier Device Package:IPAK (TO-251)
• Package / Case:TO-251-3 Short Leads, IPak, TO-251AA
