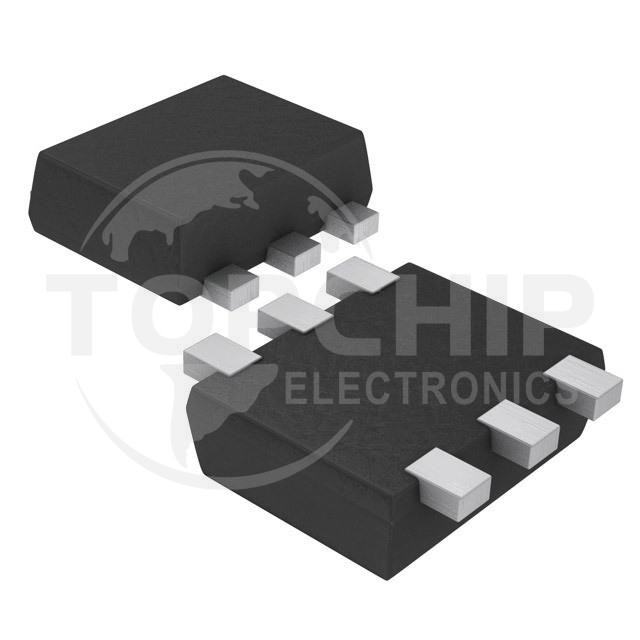

MCH6342-TL-W Specifications

• Series:-
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• FET Type:P-Channel
• Technology:MOSFET (Metal Oxide)
• Drain to Source Voltage (Vdss):30 V
• Current - Continuous Drain (Id) @ 25°C:4.5A (Ta)
• Drive Voltage (Max Rds On, Min Rds On):1.8V, 4.5V
• Rds On (Max) @ Id, Vgs:73mOhm @ 2A, 4.5V
• Vgs(th) (Max) @ Id:1.3V @ 1mA
• Gate Charge (Qg) (Max) @ Vgs:8.6 nC @ 4.5 V
• Vgs (Max):±10V
• Input Capacitance (Ciss) (Max) @ Vds:650 pF @ 10 V
• FET Feature:-
• Power Dissipation (Max):1.5W (Ta)
• Operating Temperature:150°C (TJ)
• Mounting Type:Surface Mount
• Supplier Device Package:SC-88FL/MCPH6
• Package / Case:6-SMD, Flat Leads
