SI1013X-T1-GE3 Specifications

• Series:TrenchFET®
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• FET Type:P-Channel
• Technology:MOSFET (Metal Oxide)
• Drain to Source Voltage (Vdss):20 V
• Current - Continuous Drain (Id) @ 25°C:350mA (Ta)
• Drive Voltage (Max Rds On, Min Rds On):1.8V, 4.5V
• Rds On (Max) @ Id, Vgs:1.2Ohm @ 350mA, 4.5V
• Vgs(th) (Max) @ Id:450mV @ 250µA (Min)
• Gate Charge (Qg) (Max) @ Vgs:1.5 nC @ 4.5 V
• Vgs (Max):±6V
• Input Capacitance (Ciss) (Max) @ Vds:-
• FET Feature:-
• Power Dissipation (Max):250mW (Ta)
• Operating Temperature:-55°C ~ 150°C (TJ)
• Mounting Type:Surface Mount

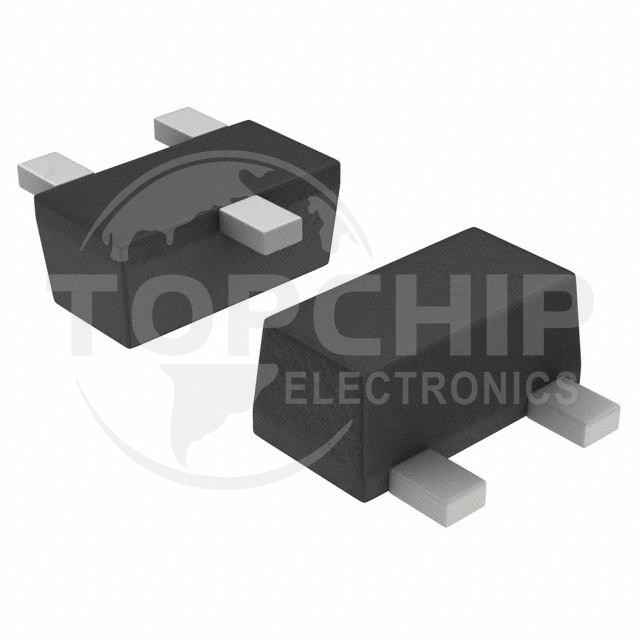

• Supplier Device Package:SC-89-3
• Package / Case:SC-89, SOT-490
