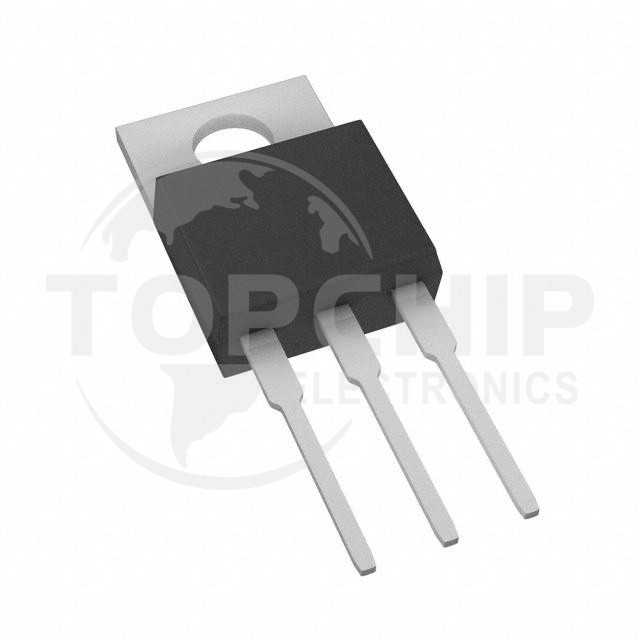

SQP90142E_GE3 Specifications

• Series:Automotive, AEC-Q101, TrenchFET®
• Package:Tube
• Part Status:Active
• FET Type:N-Channel
• Technology:MOSFET (Metal Oxide)
• Drain to Source Voltage (Vdss):200 V
• Current - Continuous Drain (Id) @ 25°C:78.5A (Tc)
• Drive Voltage (Max Rds On, Min Rds On):10V
• Rds On (Max) @ Id, Vgs:15.3mOhm @ 20A, 10V
• Vgs(th) (Max) @ Id:3.5V @ 250µA
• Gate Charge (Qg) (Max) @ Vgs:85 nC @ 10 V
• Vgs (Max):±20V
• Input Capacitance (Ciss) (Max) @ Vds:4200 pF @ 25 V
• FET Feature:-
• Power Dissipation (Max):250W (Tc)
• Operating Temperature:-55°C ~ 175°C (TJ)
• Mounting Type:Through Hole
• Supplier Device Package:TO-220AB
• Package / Case:TO-220-3
