IPP120P04P4L03AKSA2 Specifications

• Series:OptiMOS®-P2
• Package:Tube
• Part Status:Active
• FET Type:P-Channel
• Technology:MOSFET (Metal Oxide)
• Drain to Source Voltage (Vdss):40 V
• Current - Continuous Drain (Id) @ 25°C:120A (Tc)
• Drive Voltage (Max Rds On, Min Rds On):4.5V, 10V
• Rds On (Max) @ Id, Vgs:3.4mOhm @ 100A, 10V
• Vgs(th) (Max) @ Id:2.2V @ 340µA
• Gate Charge (Qg) (Max) @ Vgs:234 nC @ 10 V
• Vgs (Max):+5V, -16V
• Input Capacitance (Ciss) (Max) @ Vds:15000 pF @ 25 V
• FET Feature:-
• Power Dissipation (Max):136W (Tc)
• Operating Temperature:-55°C ~ 175°C (TJ)
• Mounting Type:Through Hole
• Supplier Device Package:PG-TO220-3-1

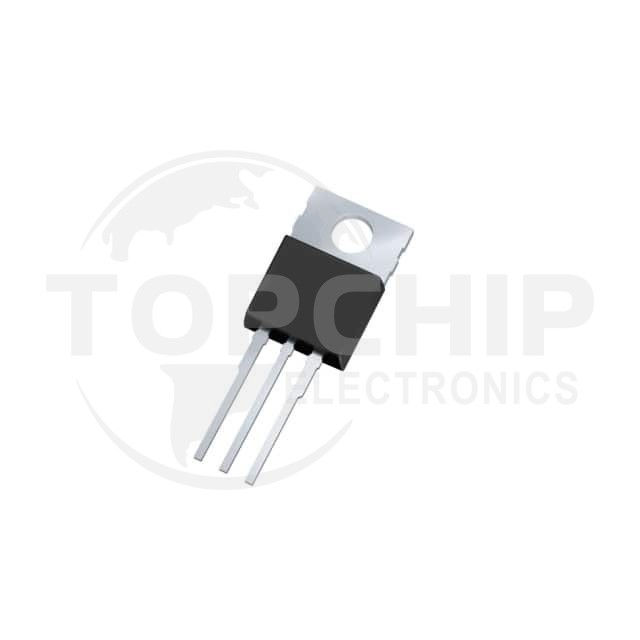

• Package / Case:TO-220-3
