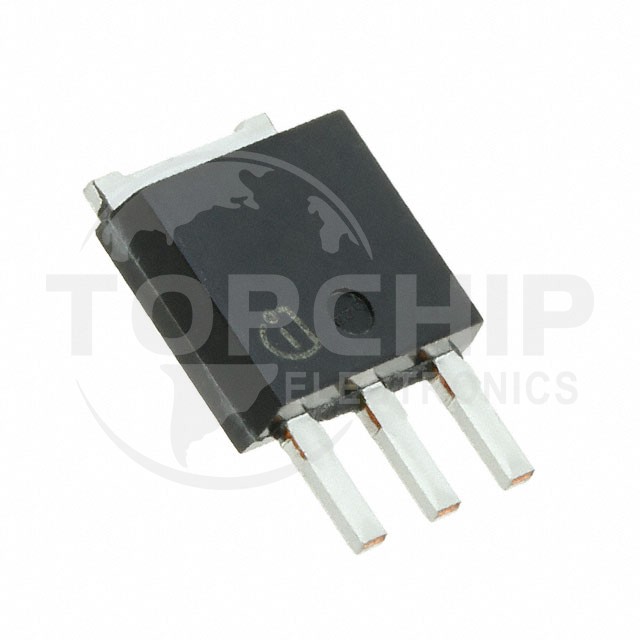

IPSA70R2K0P7SAKMA1 Specifications

• Series:CoolMOS™ P7
• Package:Tube
• Part Status:Active
• FET Type:N-Channel
• Technology:MOSFET (Metal Oxide)
• Drain to Source Voltage (Vdss):700 V
• Current - Continuous Drain (Id) @ 25°C:3A (Tc)
• Drive Voltage (Max Rds On, Min Rds On):10V
• Rds On (Max) @ Id, Vgs:2Ohm @ 500mA, 10V
• Vgs(th) (Max) @ Id:3.5V @ 30µA
• Gate Charge (Qg) (Max) @ Vgs:3.8 nC @ 400 V
• Vgs (Max):±16V
• Input Capacitance (Ciss) (Max) @ Vds:130 pF @ 400 V
• FET Feature:-
• Power Dissipation (Max):17.6W (Tc)
• Operating Temperature:-40°C ~ 150°C (TJ)
• Mounting Type:Through Hole
• Supplier Device Package:PG-TO251-3-347
• Package / Case:TO-251-3 Stub Leads, IPak
