IPI80N06S207AKSA2 Specifications

• Series:OptiMOS™
• Package:Bulk
• Part Status:Active
• FET Type:N-Channel
• Technology:MOSFET (Metal Oxide)
• Drain to Source Voltage (Vdss):55 V
• Current - Continuous Drain (Id) @ 25°C:80A (Tc)
• Drive Voltage (Max Rds On, Min Rds On):10V
• Rds On (Max) @ Id, Vgs:6.6mOhm @ 68A, 10V
• Vgs(th) (Max) @ Id:4V @ 180µA
• Gate Charge (Qg) (Max) @ Vgs:110 nC @ 10 V
• Vgs (Max):±20V
• Input Capacitance (Ciss) (Max) @ Vds:3.4 pF @ 25 V
• FET Feature:-
• Power Dissipation (Max):250W (Tc)
• Operating Temperature:-55°C ~ 175°C (TJ)
• Mounting Type:Through Hole
• Supplier Device Package:PG-TO262-3-1

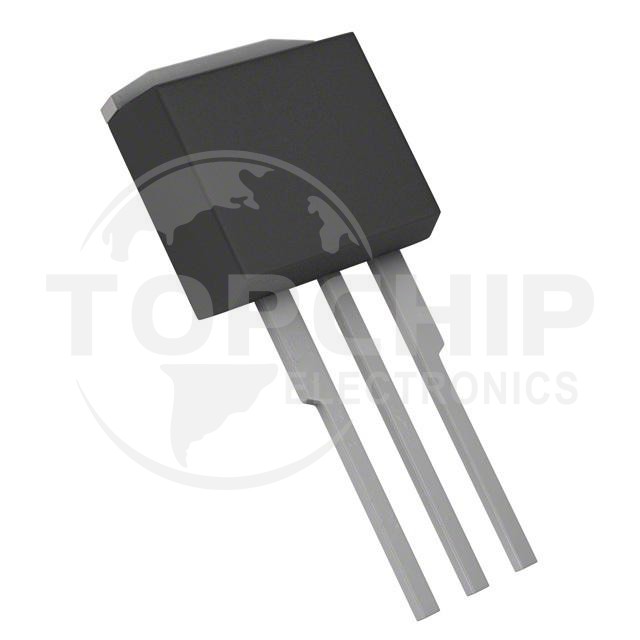

• Package / Case:TO-262-3 Long Leads, I²Pak, TO-262AA
