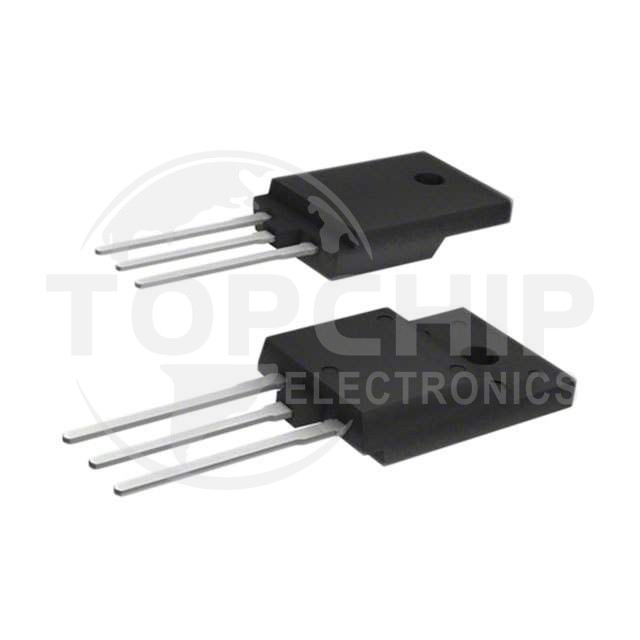

IPA60R080P7XKSA1 Specifications

• Series:CoolMOS™ P7
• Package:Tube
• Part Status:Active
• FET Type:N-Channel
• Technology:MOSFET (Metal Oxide)
• Drain to Source Voltage (Vdss):600 V
• Current - Continuous Drain (Id) @ 25°C:37A (Tc)
• Drive Voltage (Max Rds On, Min Rds On):10V
• Rds On (Max) @ Id, Vgs:80mOhm @ 11.8A, 10V
• Vgs(th) (Max) @ Id:4V @ 590µA
• Gate Charge (Qg) (Max) @ Vgs:51 nC @ 10 V
• Vgs (Max):±20V
• Input Capacitance (Ciss) (Max) @ Vds:2180 pF @ 400 V
• FET Feature:-
• Power Dissipation (Max):29W (Tc)
• Operating Temperature:-55°C ~ 150°C (TJ)
• Mounting Type:Through Hole
• Supplier Device Package:PG-TO220 Full Pack
• Package / Case:TO-220-3 Full Pack
