IRLHS6342TRPBF Specifications

• Series:HEXFET®
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• FET Type:N-Channel
• Technology:MOSFET (Metal Oxide)
• Drain to Source Voltage (Vdss):30 V
• Current - Continuous Drain (Id) @ 25°C:8.7A (Ta), 19A (Tc)
• Drive Voltage (Max Rds On, Min Rds On):2.5V, 4.5V
• Rds On (Max) @ Id, Vgs:15.5mOhm @ 8.5A, 4.5V
• Vgs(th) (Max) @ Id:1.1V @ 10µA
• Gate Charge (Qg) (Max) @ Vgs:11 nC @ 4.5 V
• Vgs (Max):±12V
• Input Capacitance (Ciss) (Max) @ Vds:1019 pF @ 25 V
• FET Feature:-
• Power Dissipation (Max):2.1W (Ta)
• Operating Temperature:-55°C ~ 150°C (TJ)
• Mounting Type:Surface Mount

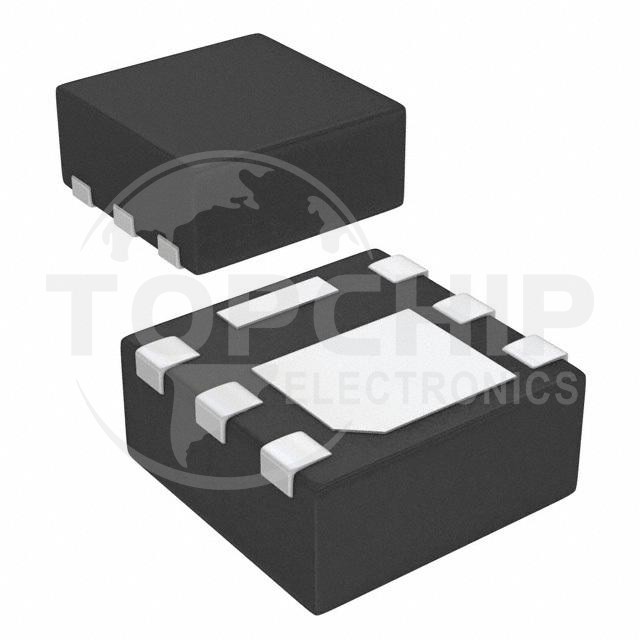

• Supplier Device Package:6-PQFN (2x2)
• Package / Case:6-PowerVDFN
