IRFML8244TRPBF Specifications

• Series:HEXFET®
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• FET Type:N-Channel
• Technology:MOSFET (Metal Oxide)
• Drain to Source Voltage (Vdss):25 V
• Current - Continuous Drain (Id) @ 25°C:5.8A (Ta)
• Drive Voltage (Max Rds On, Min Rds On):4.5V, 10V
• Rds On (Max) @ Id, Vgs:24mOhm @ 5.8A, 10V
• Vgs(th) (Max) @ Id:2.35V @ 10µA
• Gate Charge (Qg) (Max) @ Vgs:5.4 nC @ 10 V
• Vgs (Max):±20V
• Input Capacitance (Ciss) (Max) @ Vds:430 pF @ 10 V
• FET Feature:-
• Power Dissipation (Max):1.25W (Ta)
• Operating Temperature:-55°C ~ 150°C (TJ)
• Mounting Type:Surface Mount

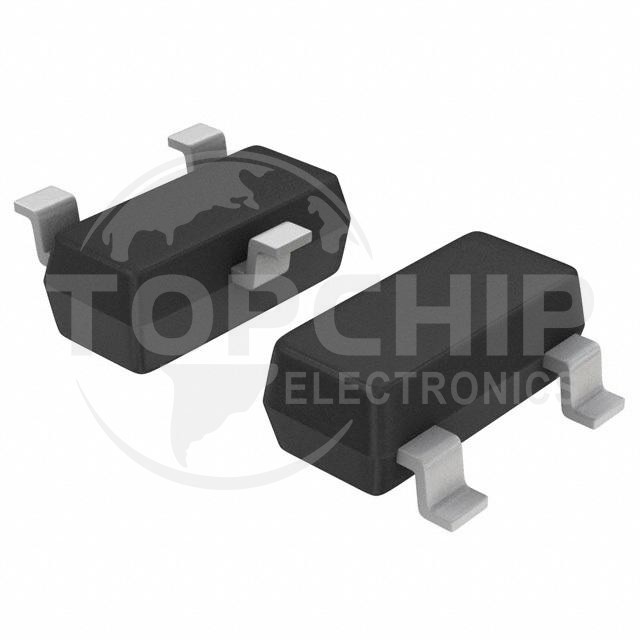

• Supplier Device Package:SOT-23
• Package / Case:TO-236-3, SC-59, SOT-23-3
