STU10N60M2 Specifications

• Series:MDmesh™ II Plus
• Package:Tube
• Part Status:Obsolete
• FET Type:N-Channel
• Technology:MOSFET (Metal Oxide)
• Drain to Source Voltage (Vdss):600 V
• Current - Continuous Drain (Id) @ 25°C:7.5A (Tc)
• Drive Voltage (Max Rds On, Min Rds On):10V
• Rds On (Max) @ Id, Vgs:600mOhm @ 3A, 10V
• Vgs(th) (Max) @ Id:4V @ 250µA
• Gate Charge (Qg) (Max) @ Vgs:13.5 nC @ 10 V
• Vgs (Max):±25V
• Input Capacitance (Ciss) (Max) @ Vds:400 pF @ 100 V
• FET Feature:-
• Power Dissipation (Max):85W (Tc)
• Operating Temperature:-55°C ~ 150°C (TJ)
• Mounting Type:Through Hole
• Supplier Device Package:I-PAK

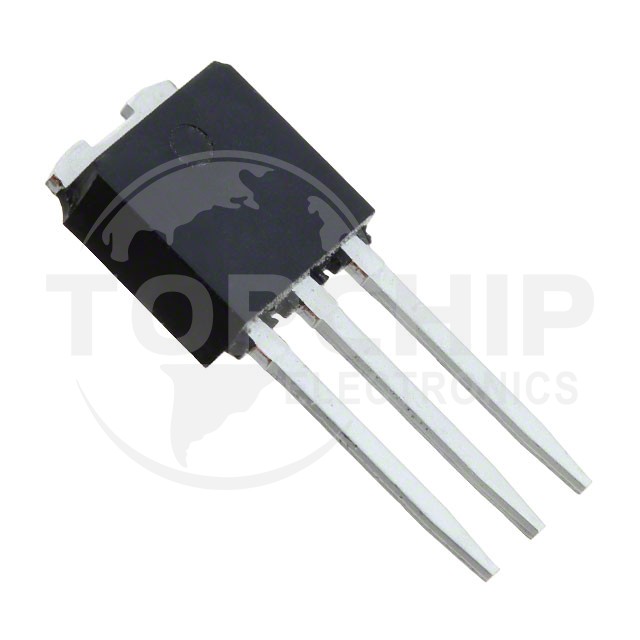

• Package / Case:TO-251-3 Short Leads, IPak, TO-251AA
