IRFH5215TRPBF Specifications

• Series:HEXFET®
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• FET Type:N-Channel
• Technology:MOSFET (Metal Oxide)
• Drain to Source Voltage (Vdss):150 V
• Current - Continuous Drain (Id) @ 25°C:5A (Ta), 27A (Tc)
• Drive Voltage (Max Rds On, Min Rds On):10V
• Rds On (Max) @ Id, Vgs:58mOhm @ 16A, 10V
• Vgs(th) (Max) @ Id:5V @ 100µA
• Gate Charge (Qg) (Max) @ Vgs:32 nC @ 10 V
• Vgs (Max):±20V
• Input Capacitance (Ciss) (Max) @ Vds:1350 pF @ 50 V
• FET Feature:-
• Power Dissipation (Max):3.6W (Ta), 104W (Tc)
• Operating Temperature:-55°C ~ 150°C (TJ)
• Mounting Type:Surface Mount

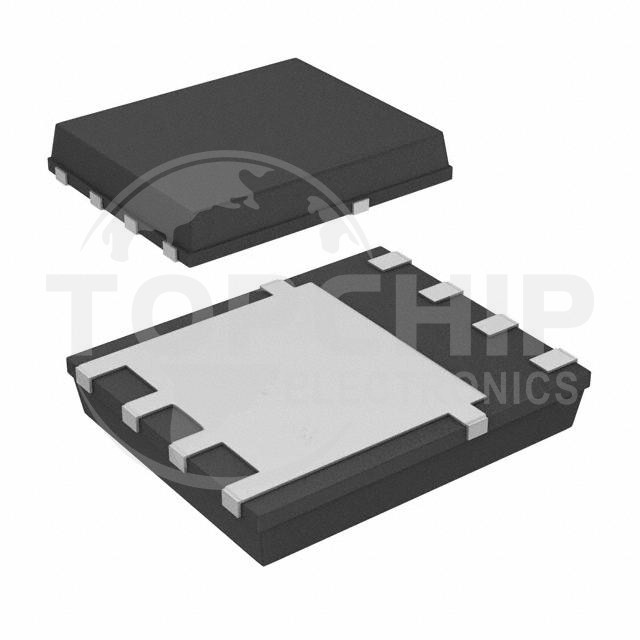

• Supplier Device Package:PQFN (5x6)
• Package / Case:8-VQFN Exposed Pad
