IRFSL7437PBF Specifications

• Series:HEXFET®, StrongIRFET™
• Package:Tube
• Part Status:Active
• FET Type:N-Channel
• Technology:MOSFET (Metal Oxide)
• Drain to Source Voltage (Vdss):40 V
• Current - Continuous Drain (Id) @ 25°C:195A (Tc)
• Drive Voltage (Max Rds On, Min Rds On):6V, 10V
• Rds On (Max) @ Id, Vgs:1.8mOhm @ 100A, 10V
• Vgs(th) (Max) @ Id:3.9V @ 150µA
• Gate Charge (Qg) (Max) @ Vgs:225 nC @ 10 V
• Vgs (Max):±20V
• Input Capacitance (Ciss) (Max) @ Vds:7330 pF @ 25 V
• FET Feature:-
• Power Dissipation (Max):230W (Tc)
• Operating Temperature:-55°C ~ 175°C (TJ)
• Mounting Type:Through Hole

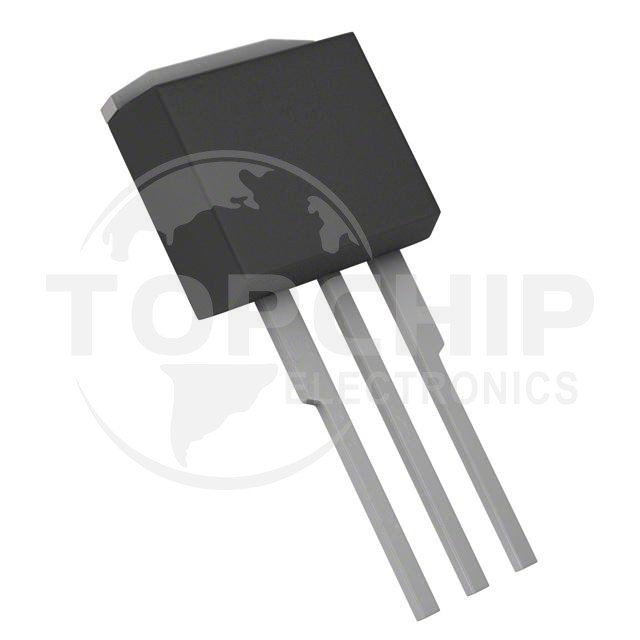

• Supplier Device Package:TO-262
• Package / Case:TO-262-3 Long Leads, I²Pak, TO-262AA
