RD3L080SNFRATL Specifications

• Series:Automotive, AEC-Q101
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• FET Type:N-Channel
• Technology:MOSFET (Metal Oxide)
• Drain to Source Voltage (Vdss):60 V
• Current - Continuous Drain (Id) @ 25°C:8A (Ta)
• Drive Voltage (Max Rds On, Min Rds On):4V, 10V
• Rds On (Max) @ Id, Vgs:80mOhm @ 8A, 10V
• Vgs(th) (Max) @ Id:2.5V @ 1mA
• Gate Charge (Qg) (Max) @ Vgs:9.4 nC @ 10 V
• Vgs (Max):±20V
• Input Capacitance (Ciss) (Max) @ Vds:380 pF @ 10 V
• FET Feature:-
• Power Dissipation (Max):15W (Tc)
• Operating Temperature:150°C (TJ)
• Mounting Type:Surface Mount

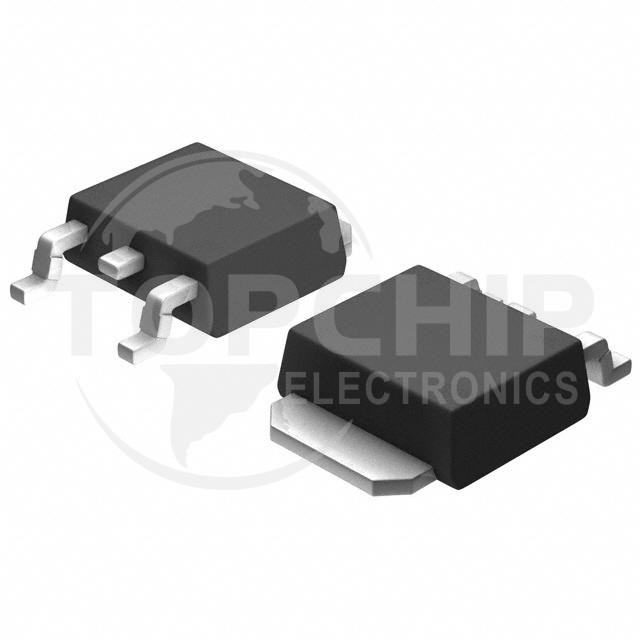

• Supplier Device Package:TO-252
• Package / Case:TO-252-3, DPak (2 Leads + Tab), SC-63
