SIA108DJ-T1-GE3 Specifications

• Series:TrenchFET® Gen IV
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• FET Type:N-Channel
• Technology:MOSFET (Metal Oxide)
• Drain to Source Voltage (Vdss):80 V
• Current - Continuous Drain (Id) @ 25°C:6.6A (Ta), 12A (Tc)
• Drive Voltage (Max Rds On, Min Rds On):7.5V, 10V
• Rds On (Max) @ Id, Vgs:38mOhm @ 4A, 10V
• Vgs(th) (Max) @ Id:4V @ 250µA
• Gate Charge (Qg) (Max) @ Vgs:13 nC @ 10 V
• Vgs (Max):±20V
• Input Capacitance (Ciss) (Max) @ Vds:545 pF @ 40 V
• FET Feature:-
• Power Dissipation (Max):3.5W (Ta), 19W (Tc)
• Operating Temperature:-55°C ~ 150°C (TJ)
• Mounting Type:Surface Mount

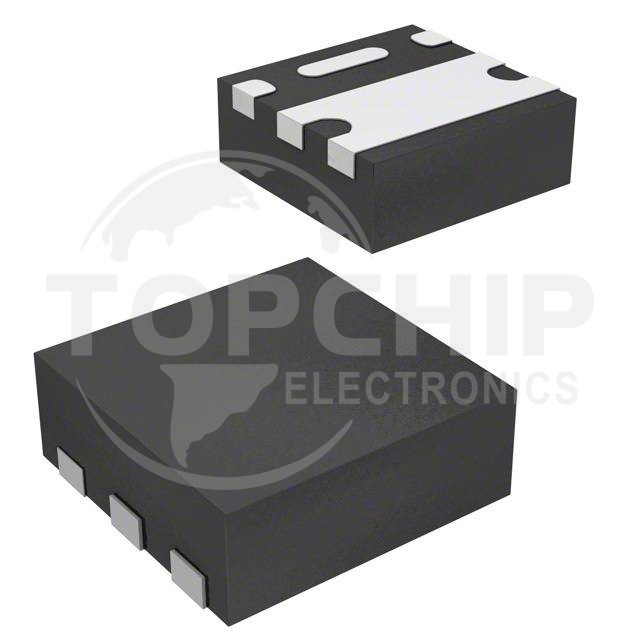

• Supplier Device Package:PowerPAK® SC-70-6 Single
• Package / Case:PowerPAK® SC-70-6
