IPP65R110CFDAAKSA1 Specifications

• Series:Automotive, AEC-Q101, CoolMOS™
• Package:Tube
• Part Status:Active
• FET Type:N-Channel
• Technology:MOSFET (Metal Oxide)
• Drain to Source Voltage (Vdss):650 V
• Current - Continuous Drain (Id) @ 25°C:31.2A (Tc)
• Drive Voltage (Max Rds On, Min Rds On):10V
• Rds On (Max) @ Id, Vgs:110mOhm @ 12.7A, 10V
• Vgs(th) (Max) @ Id:4.5V @ 1.3mA
• Gate Charge (Qg) (Max) @ Vgs:118 nC @ 10 V
• Vgs (Max):±20V
• Input Capacitance (Ciss) (Max) @ Vds:3240 pF @ 100 V
• FET Feature:-
• Power Dissipation (Max):277.8W (Tc)
• Operating Temperature:-40°C ~ 150°C (TJ)
• Mounting Type:Through Hole

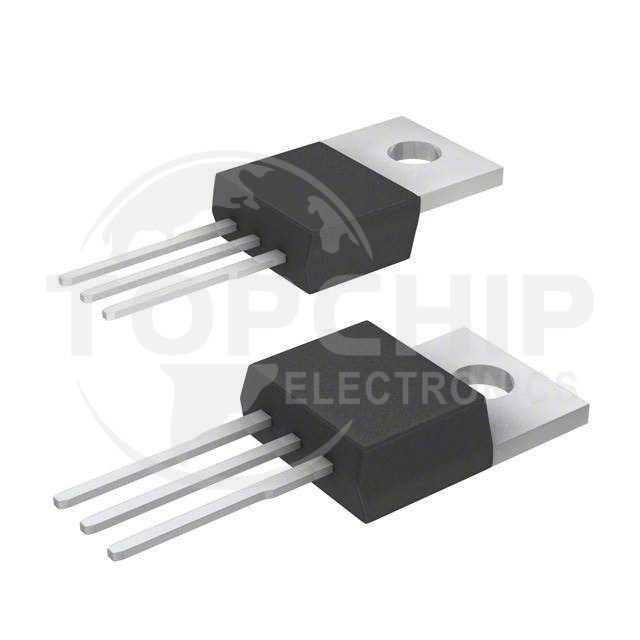

• Supplier Device Package:PG-TO220-3
• Package / Case:TO-220-3
