DMNH6021SK3Q-13 Specifications

• Series:Automotive, AEC-Q101
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• FET Type:N-Channel
• Technology:MOSFET (Metal Oxide)
• Drain to Source Voltage (Vdss):60 V
• Current - Continuous Drain (Id) @ 25°C:50A (Tc)
• Drive Voltage (Max Rds On, Min Rds On):4.5V, 10V
• Rds On (Max) @ Id, Vgs:23mOhm @ 12A, 10V
• Vgs(th) (Max) @ Id:3V @ 250µA
• Gate Charge (Qg) (Max) @ Vgs:20.1 nC @ 10 V
• Vgs (Max):±20V
• Input Capacitance (Ciss) (Max) @ Vds:1143 pF @ 25 V
• FET Feature:-
• Power Dissipation (Max):2.1W (Ta)
• Operating Temperature:-55°C ~ 175°C (TJ)
• Mounting Type:Surface Mount

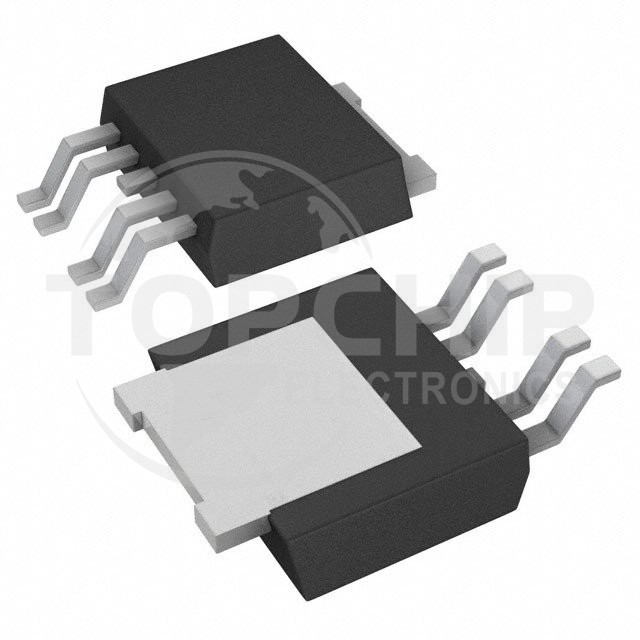

• Supplier Device Package:TO-252-4L
• Package / Case:TO-252-5, DPak (4 Leads + Tab), TO-252AD
