DMP26M7UFG-7 Specifications

• Series:-
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• FET Type:P-Channel
• Technology:MOSFET (Metal Oxide)
• Drain to Source Voltage (Vdss):20 V
• Current - Continuous Drain (Id) @ 25°C:18A (Ta), 40A (Tc)
• Drive Voltage (Max Rds On, Min Rds On):1.8V, 4.5V
• Rds On (Max) @ Id, Vgs:6.7mOhm @ 15A, 4.5V
• Vgs(th) (Max) @ Id:1V @ 250µA
• Gate Charge (Qg) (Max) @ Vgs:156 nC @ 10 V
• Vgs (Max):±10V
• Input Capacitance (Ciss) (Max) @ Vds:5940 pF @ 10 V
• FET Feature:-
• Power Dissipation (Max):2.3W (Ta)
• Operating Temperature:-55°C ~ 150°C (TJ)
• Mounting Type:Surface Mount

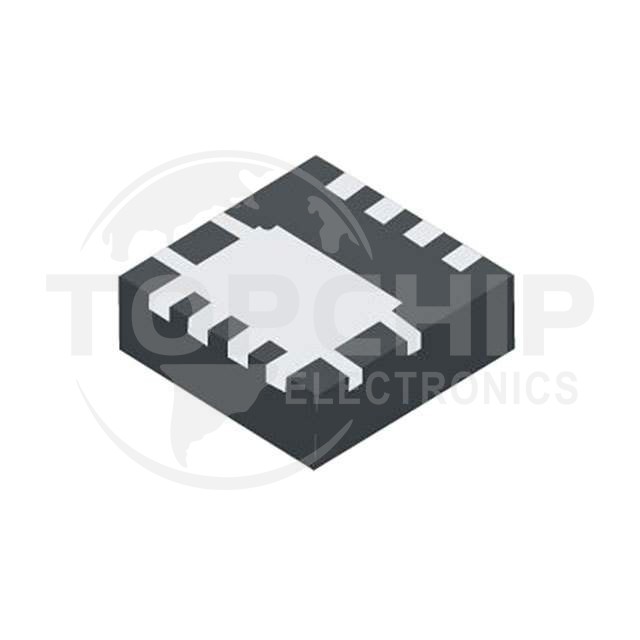

• Supplier Device Package:PowerDI3333-8
• Package / Case:8-PowerVDFN
