DMN1032UCB4-7 Specifications

• Series:-
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• FET Type:N-Channel
• Technology:MOSFET (Metal Oxide)
• Drain to Source Voltage (Vdss):12 V
• Current - Continuous Drain (Id) @ 25°C:4.8A (Ta)
• Drive Voltage (Max Rds On, Min Rds On):1.8V, 4.5V
• Rds On (Max) @ Id, Vgs:26mOhm @ 1A, 4.5V
• Vgs(th) (Max) @ Id:1.2V @ 250µA
• Gate Charge (Qg) (Max) @ Vgs:4.5 nC @ 4.5 V
• Vgs (Max):±8V
• Input Capacitance (Ciss) (Max) @ Vds:450 pF @ 6 V
• FET Feature:-
• Power Dissipation (Max):900mW (Ta)
• Operating Temperature:-55°C ~ 150°C (TJ)
• Mounting Type:Surface Mount

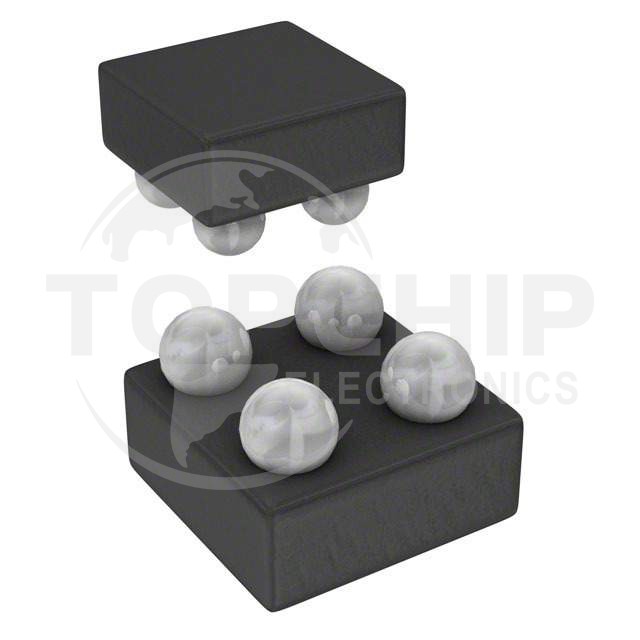

• Supplier Device Package:U-WLB1010-4
• Package / Case:4-UFBGA, WLBGA
