STI24NM60N Specifications

• Series:MDmesh™ II
• Package:Tube
• Part Status:Not For New Designs
• FET Type:N-Channel
• Technology:MOSFET (Metal Oxide)
• Drain to Source Voltage (Vdss):600 V
• Current - Continuous Drain (Id) @ 25°C:17A (Tc)
• Drive Voltage (Max Rds On, Min Rds On):10V
• Rds On (Max) @ Id, Vgs:190mOhm @ 8A, 10V
• Vgs(th) (Max) @ Id:4V @ 250µA
• Gate Charge (Qg) (Max) @ Vgs:46 nC @ 10 V
• Vgs (Max):±30V
• Input Capacitance (Ciss) (Max) @ Vds:1400 pF @ 50 V
• FET Feature:-
• Power Dissipation (Max):125W (Tc)
• Operating Temperature:-55°C ~ 150°C (TJ)
• Mounting Type:Through Hole

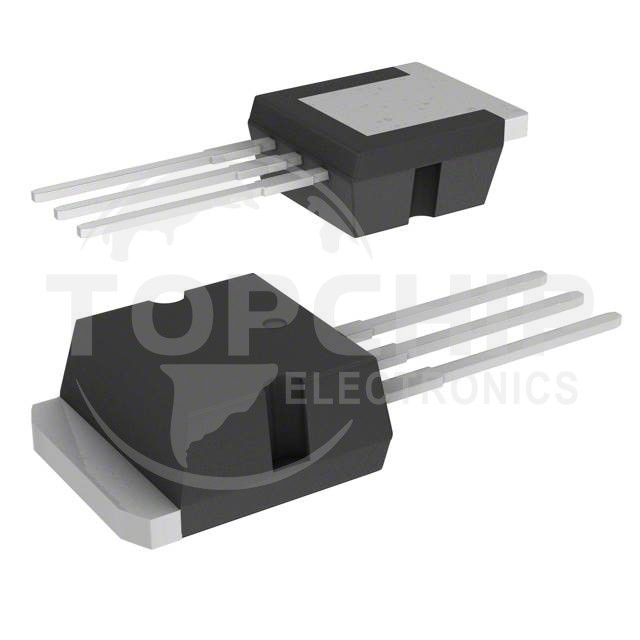

• Supplier Device Package:I2PAK
• Package / Case:TO-262-3 Long Leads, I²Pak, TO-262AA
