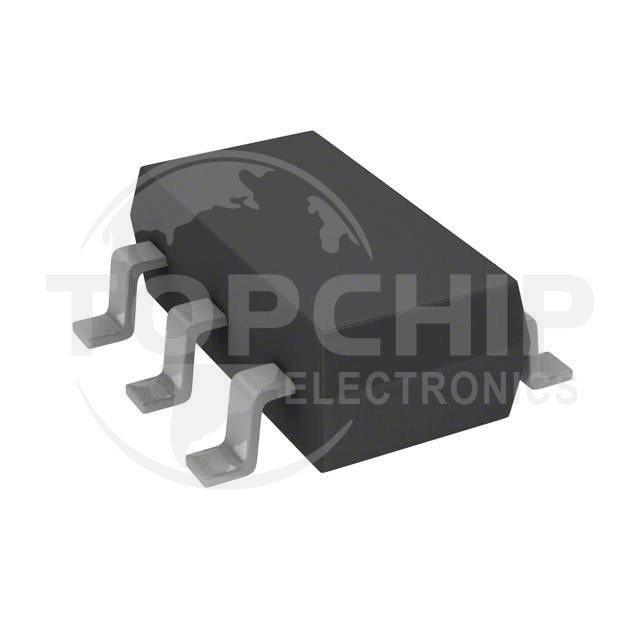

DMN10H170SVT-7 Specifications

• Series:-
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• FET Type:N-Channel
• Technology:MOSFET (Metal Oxide)
• Drain to Source Voltage (Vdss):100 V
• Current - Continuous Drain (Id) @ 25°C:2.6A (Ta)
• Drive Voltage (Max Rds On, Min Rds On):4.5V, 10V
• Rds On (Max) @ Id, Vgs:160mOhm @ 5A, 10V
• Vgs(th) (Max) @ Id:3V @ 250µA
• Gate Charge (Qg) (Max) @ Vgs:9.7 nC @ 10 V
• Vgs (Max):±20V
• Input Capacitance (Ciss) (Max) @ Vds:1167 pF @ 25 V
• FET Feature:-
• Power Dissipation (Max):1.2W (Ta)
• Operating Temperature:-55°C ~ 150°C (TJ)
• Mounting Type:Surface Mount
• Supplier Device Package:TSOT-26
• Package / Case:SOT-23-6 Thin, TSOT-23-6
