IXFA230N075T2-7 Specifications

• Series:GigaMOS™, HiPerFET™, TrenchT2™
• Package:Tube
• Part Status:Active
• FET Type:N-Channel
• Technology:MOSFET (Metal Oxide)
• Drain to Source Voltage (Vdss):75 V
• Current - Continuous Drain (Id) @ 25°C:230A (Tc)
• Drive Voltage (Max Rds On, Min Rds On):10V
• Rds On (Max) @ Id, Vgs:4.2mOhm @ 50A, 10V
• Vgs(th) (Max) @ Id:4V @ 1mA
• Gate Charge (Qg) (Max) @ Vgs:178 nC @ 10 V
• Vgs (Max):-
• Input Capacitance (Ciss) (Max) @ Vds:10500 pF @ 25 V
• FET Feature:-
• Power Dissipation (Max):480W (Tc)
• Operating Temperature:-55°C ~ 175°C (TJ)
• Mounting Type:Surface Mount

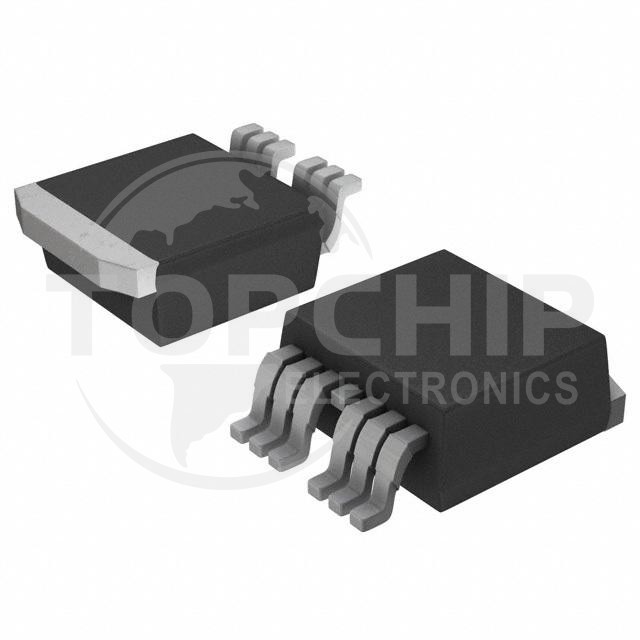

• Supplier Device Package:TO-263-7 (IXTA..7)
• Package / Case:TO-263-7, D²Pak (6 Leads + Tab)
