SI8483DB-T2-E1 Specifications

• Series:TrenchFET®
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• FET Type:P-Channel
• Technology:MOSFET (Metal Oxide)
• Drain to Source Voltage (Vdss):12 V
• Current - Continuous Drain (Id) @ 25°C:16A (Tc)
• Drive Voltage (Max Rds On, Min Rds On):1.5V, 4.5V
• Rds On (Max) @ Id, Vgs:26mOhm @ 1.5A, 4.5V
• Vgs(th) (Max) @ Id:800mV @ 250µA
• Gate Charge (Qg) (Max) @ Vgs:65 nC @ 10 V
• Vgs (Max):±10V
• Input Capacitance (Ciss) (Max) @ Vds:1840 pF @ 6 V
• FET Feature:-
• Power Dissipation (Max):2.77W (Ta), 13W (Tc)
• Operating Temperature:-55°C ~ 150°C (TJ)
• Mounting Type:Surface Mount

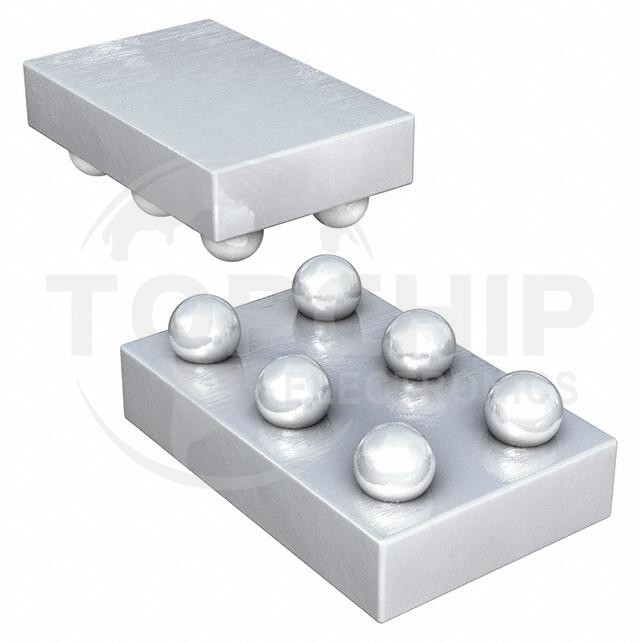

• Supplier Device Package:6-Micro Foot™ (1.5x1)
• Package / Case:6-UFBGA
