IXTA130N10T7 Specifications

• Series:TrenchMV™
• Package:Tube
• Part Status:Active
• FET Type:N-Channel
• Technology:MOSFET (Metal Oxide)
• Drain to Source Voltage (Vdss):100 V
• Current - Continuous Drain (Id) @ 25°C:130A (Tc)
• Drive Voltage (Max Rds On, Min Rds On):10V
• Rds On (Max) @ Id, Vgs:9.1mOhm @ 25A, 10V
• Vgs(th) (Max) @ Id:4.5V @ 250µA
• Gate Charge (Qg) (Max) @ Vgs:104 nC @ 10 V
• Vgs (Max):±20V
• Input Capacitance (Ciss) (Max) @ Vds:5080 pF @ 25 V
• FET Feature:-
• Power Dissipation (Max):360W (Tc)
• Operating Temperature:-55°C ~ 175°C (TJ)
• Mounting Type:Surface Mount
• Supplier Device Package:TO-263 (IXTA)

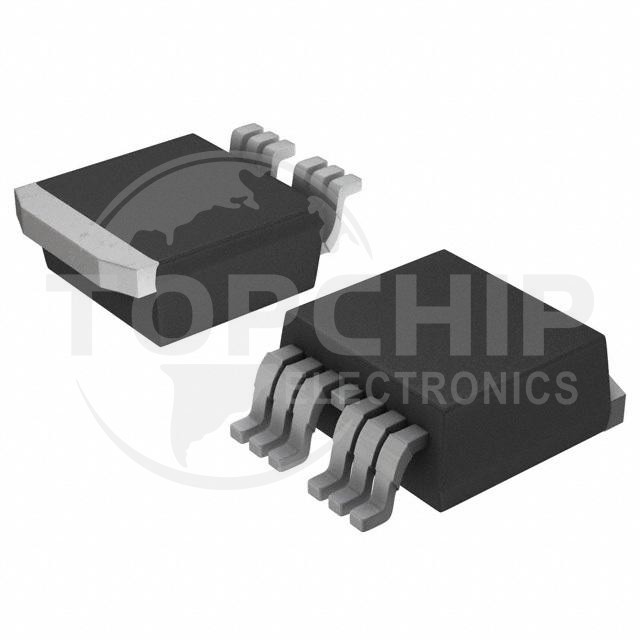

• Package / Case:TO-263-7, D²Pak (6 Leads + Tab)
