DMP2003UPS-13 Specifications

• Series:-
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• FET Type:P-Channel
• Technology:MOSFET (Metal Oxide)
• Drain to Source Voltage (Vdss):20 V
• Current - Continuous Drain (Id) @ 25°C:150A (Tc)
• Drive Voltage (Max Rds On, Min Rds On):2.5V, 10V
• Rds On (Max) @ Id, Vgs:2.2mOhm @ 25A, 10V
• Vgs(th) (Max) @ Id:1.4V @ 250µA
• Gate Charge (Qg) (Max) @ Vgs:177 nC @ 10 V
• Vgs (Max):±12V
• Input Capacitance (Ciss) (Max) @ Vds:8352 pF @ 10 V
• FET Feature:-
• Power Dissipation (Max):1.4W
• Operating Temperature:-55°C ~ 150°C (TJ)
• Mounting Type:Surface Mount

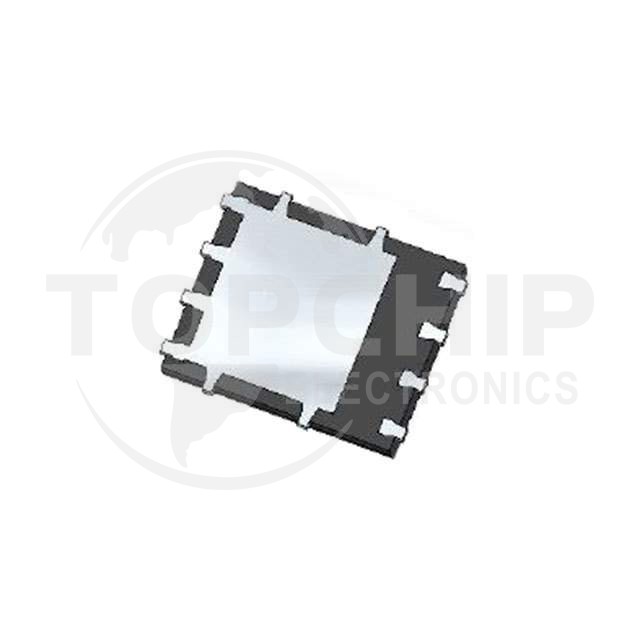

• Supplier Device Package:PowerDI5060-8
• Package / Case:8-PowerTDFN
