DMN1054UCB4-7 Specifications

• Series:-
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• FET Type:N-Channel
• Technology:MOSFET (Metal Oxide)
• Drain to Source Voltage (Vdss):8 V
• Current - Continuous Drain (Id) @ 25°C:2.7A (Ta)
• Drive Voltage (Max Rds On, Min Rds On):1.2V, 4.5V
• Rds On (Max) @ Id, Vgs:42mOhm @ 1A, 4.5V
• Vgs(th) (Max) @ Id:700mV @ 250µA
• Gate Charge (Qg) (Max) @ Vgs:15 nC @ 4.5 V
• Vgs (Max):±5V
• Input Capacitance (Ciss) (Max) @ Vds:908 pF @ 6 V
• FET Feature:-
• Power Dissipation (Max):740mW (Ta)
• Operating Temperature:-55°C ~ 150°C (TJ)
• Mounting Type:Surface Mount
• Supplier Device Package:X1-WLB0808-4

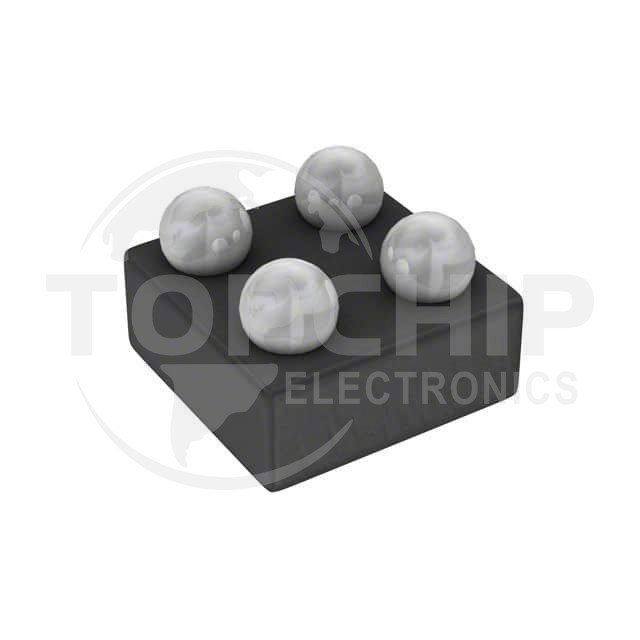

• Package / Case:4-XFBGA, WLBGA
