IPL60R185P7AUMA1 Specifications

• Series:CoolMOS™ P7
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• FET Type:N-Channel
• Technology:MOSFET (Metal Oxide)
• Drain to Source Voltage (Vdss):650 V
• Current - Continuous Drain (Id) @ 25°C:19A (Tc)
• Drive Voltage (Max Rds On, Min Rds On):10V
• Rds On (Max) @ Id, Vgs:185mOhm @ 5.6A, 10V
• Vgs(th) (Max) @ Id:4V @ 280µA
• Gate Charge (Qg) (Max) @ Vgs:25 nC @ 10 V
• Vgs (Max):±20V
• Input Capacitance (Ciss) (Max) @ Vds:1081 pF @ 400 V
• FET Feature:-
• Power Dissipation (Max):81W (Tc)
• Operating Temperature:-40°C ~ 150°C (TJ)
• Mounting Type:Surface Mount

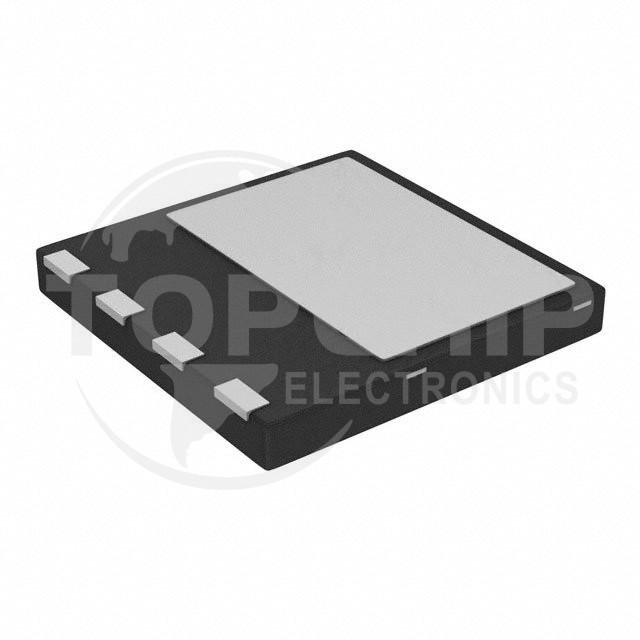

• Supplier Device Package:PG-VSON-4
• Package / Case:4-PowerTSFN
