CSD16327Q3 Specifications

• Series:NexFET™
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• FET Type:N-Channel
• Technology:MOSFET (Metal Oxide)
• Drain to Source Voltage (Vdss):25 V
• Current - Continuous Drain (Id) @ 25°C:60A (Tc)
• Drive Voltage (Max Rds On, Min Rds On):3V, 8V
• Rds On (Max) @ Id, Vgs:4mOhm @ 24A, 8V
• Vgs(th) (Max) @ Id:1.4V @ 250µA
• Gate Charge (Qg) (Max) @ Vgs:8.4 nC @ 4.5 V
• Vgs (Max):+10V, -8V
• Input Capacitance (Ciss) (Max) @ Vds:1300 pF @ 12.5 V
• FET Feature:-
• Power Dissipation (Max):3W (Ta)
• Operating Temperature:-55°C ~ 150°C (TJ)
• Mounting Type:Surface Mount

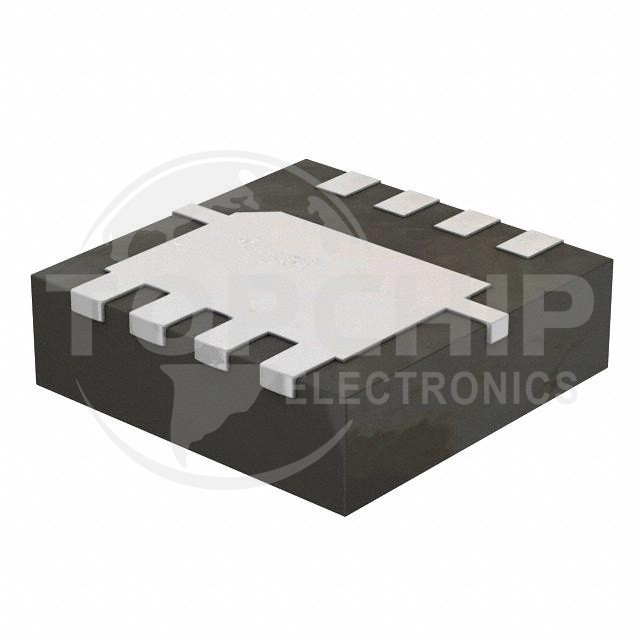

• Supplier Device Package:8-VSON-CLIP (3.3x3.3)
• Package / Case:8-PowerTDFN
