AUIRLL024ZTR Specifications

• Series:HEXFET®
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Last Time Buy
• FET Type:N-Channel
• Technology:MOSFET (Metal Oxide)
• Drain to Source Voltage (Vdss):55 V
• Current - Continuous Drain (Id) @ 25°C:5A (Ta)
• Drive Voltage (Max Rds On, Min Rds On):4.5V, 10V
• Rds On (Max) @ Id, Vgs:60mOhm @ 3A, 10V
• Vgs(th) (Max) @ Id:3V @ 250µA
• Gate Charge (Qg) (Max) @ Vgs:11 nC @ 5 V
• Vgs (Max):±16V
• Input Capacitance (Ciss) (Max) @ Vds:380 pF @ 25 V
• FET Feature:-
• Power Dissipation (Max):1W (Ta)
• Operating Temperature:-55°C ~ 150°C (TJ)
• Mounting Type:Surface Mount

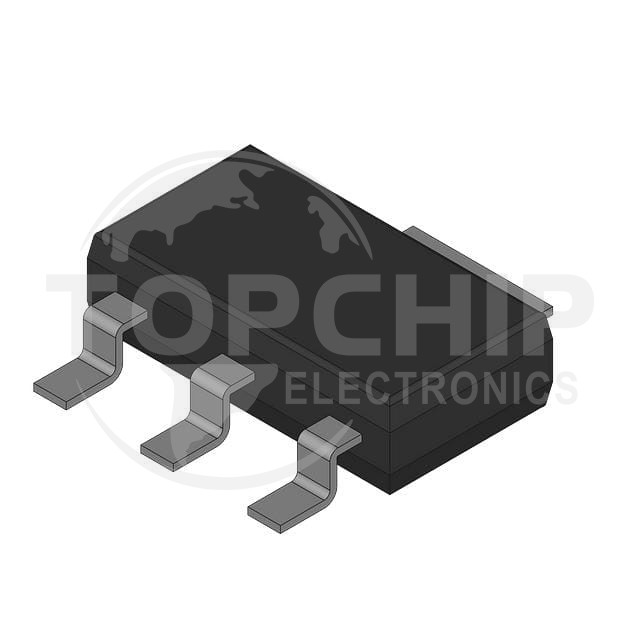

• Supplier Device Package:SOT-223
• Package / Case:TO-261-4, TO-261AA
