DMN33D8LTQ-7 Specifications

• Series:Automotive, AEC-Q101
• Package:Tape & Reel (TR)
• Part Status:Active
• FET Type:N-Channel
• Technology:MOSFET (Metal Oxide)
• Drain to Source Voltage (Vdss):30 V
• Current - Continuous Drain (Id) @ 25°C:115mA (Ta)
• Drive Voltage (Max Rds On, Min Rds On):2.5V, 4V
• Rds On (Max) @ Id, Vgs:5Ohm @ 10mA, 4V
• Vgs(th) (Max) @ Id:1.5V @ 100µA
• Gate Charge (Qg) (Max) @ Vgs:0.55 nC @ 10 V
• Vgs (Max):±20V
• Input Capacitance (Ciss) (Max) @ Vds:48 pF @ 5 V
• FET Feature:-
• Power Dissipation (Max):240mW (Ta)
• Operating Temperature:-55°C ~ 150°C (TJ)
• Mounting Type:Surface Mount

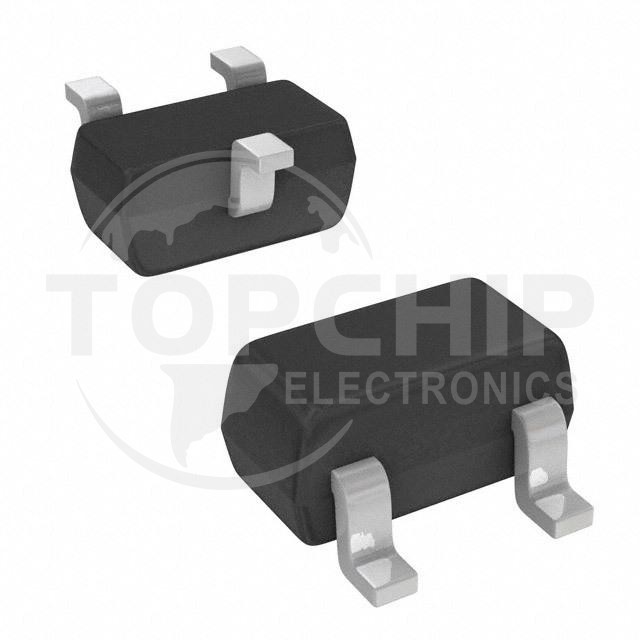

• Supplier Device Package:SOT-523
• Package / Case:SOT-523
