DMPH4015SK3-13 Specifications

• Series:-
• Package:Tape & Reel (TR)
• Part Status:Active
• FET Type:P-Channel
• Technology:MOSFET (Metal Oxide)
• Drain to Source Voltage (Vdss):40 V
• Current - Continuous Drain (Id) @ 25°C:45A (Tc)
• Drive Voltage (Max Rds On, Min Rds On):4.5V, 10V
• Rds On (Max) @ Id, Vgs:11mOhm @ 9.8A, 10V
• Vgs(th) (Max) @ Id:2.5V @ 250µA
• Gate Charge (Qg) (Max) @ Vgs:91 nC @ 10 V
• Vgs (Max):±25V
• Input Capacitance (Ciss) (Max) @ Vds:4234 pF @ 20 V
• FET Feature:-
• Power Dissipation (Max):3.3W (Ta)
• Operating Temperature:-55°C ~ 175°C (TJ)
• Mounting Type:Surface Mount

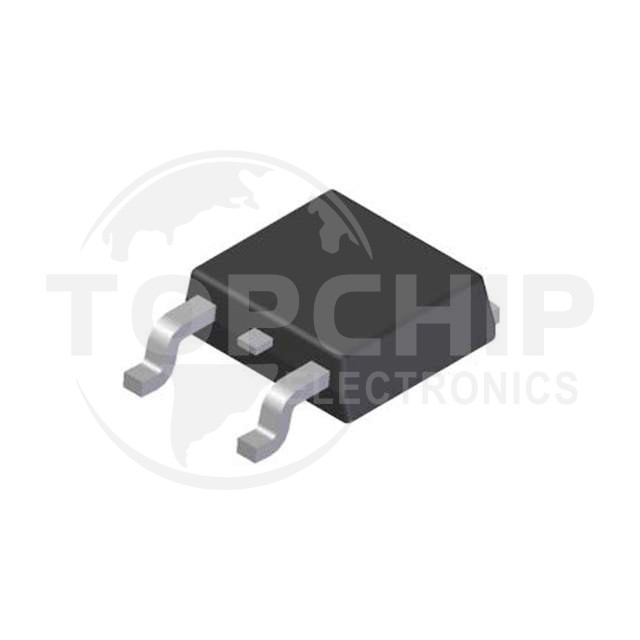

• Supplier Device Package:TO-252, (D-Pak)
• Package / Case:TO-252-3, DPak (2 Leads + Tab), SC-63
